SKU: UCPX15D1-NTN

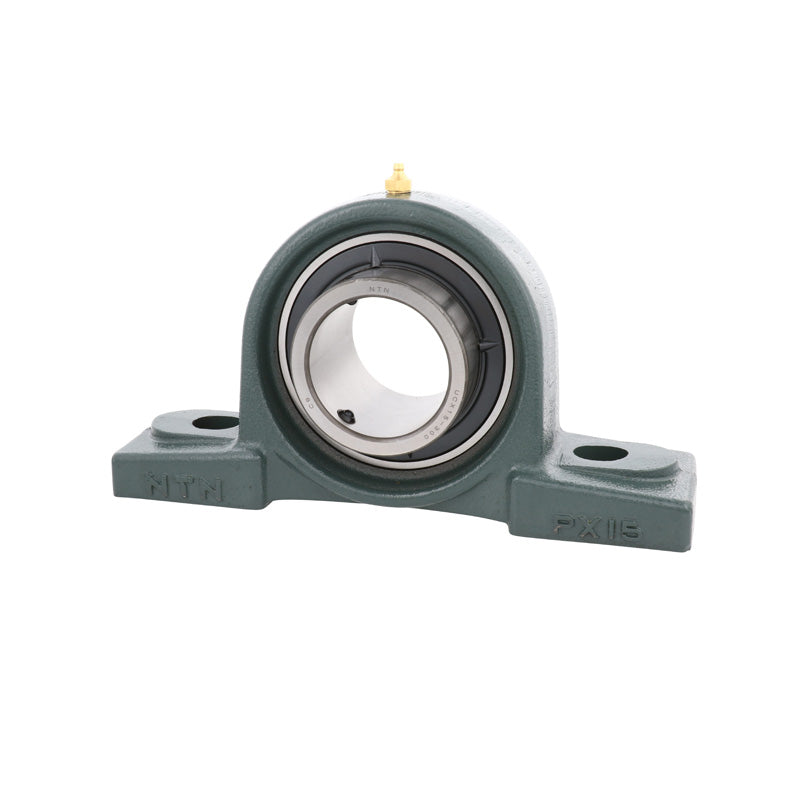

NTN UCPX15D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
NTN UCPX15D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
€143,95
ex VAT
Regular price
Sale price
€143,95
ex VAT
In stock
Price Break
3+
€108,98
4+
€102,86
9+
€101,63
19+
€100,41
49+
€99,18
99+
€97,96
499+
€91,84
999+
€90,61
1999+
€89,39
2999+
€88,16
4999+
€85,72
Quantity
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCPX
- Bolt Hole Centres:
- 229mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| H | 88.9mm |
| L | 330mm |
| J | 229mm |
| A | 89mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 35mm |
| H<sub>2</sub> | 175mm |
| L<sub>1</sub> | 95mm |
| B | 82.6mm |
| S | 33.3mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 10 kg |
