SKU: UCPX14D1-NTN

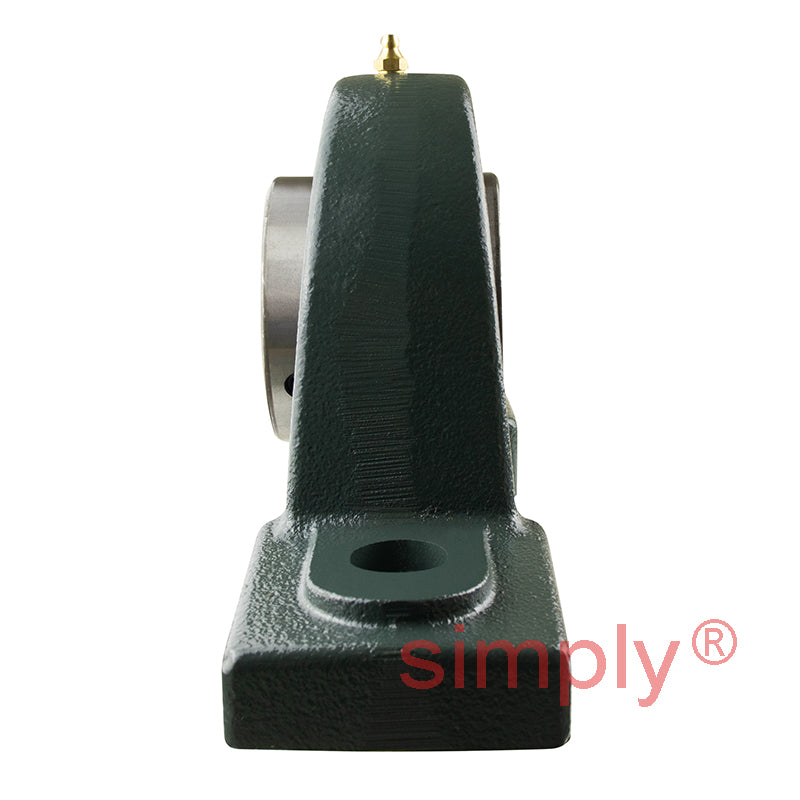

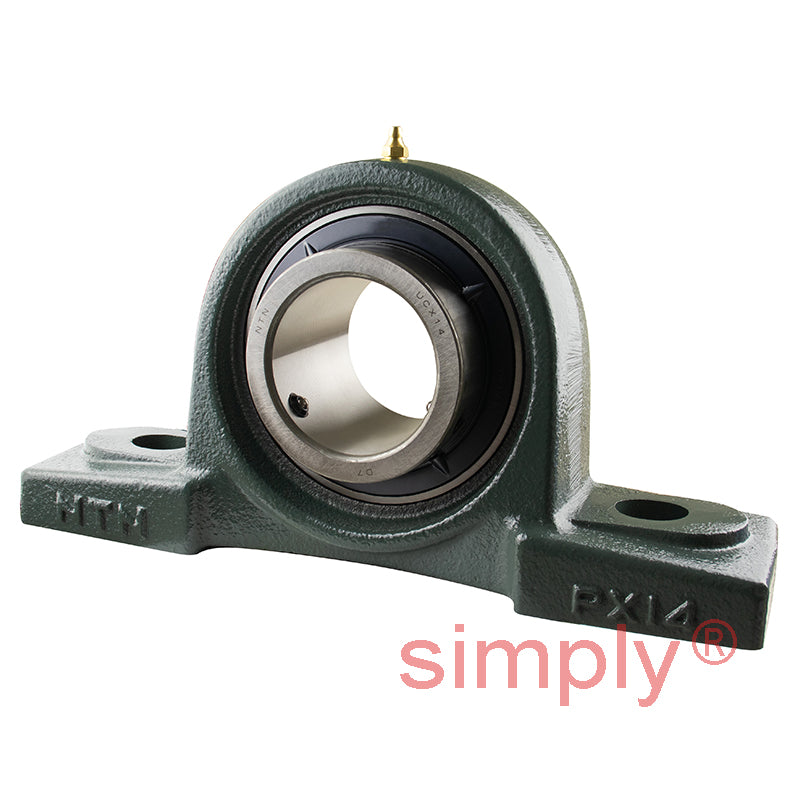

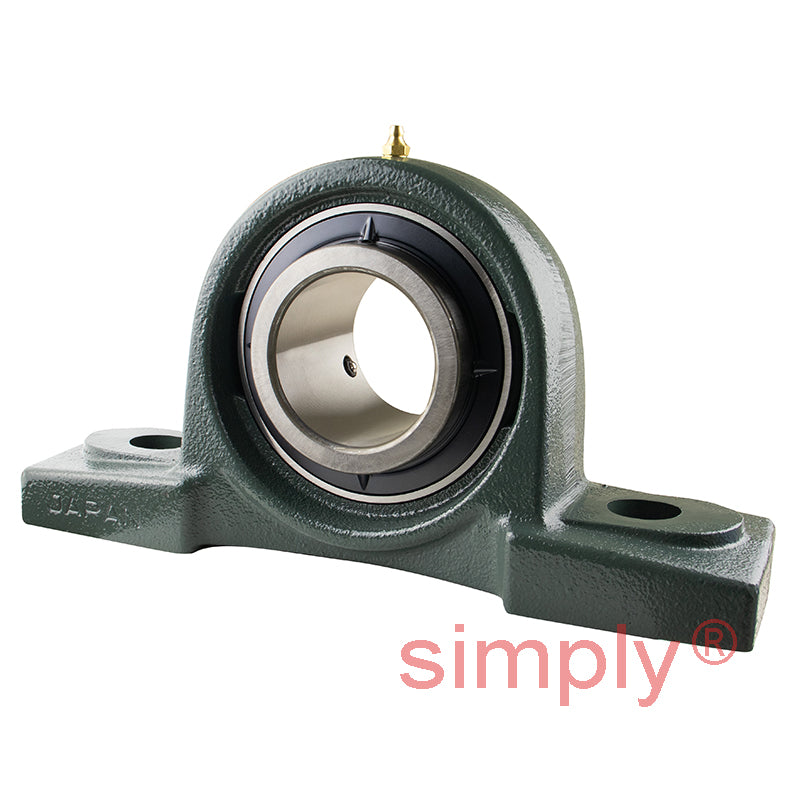

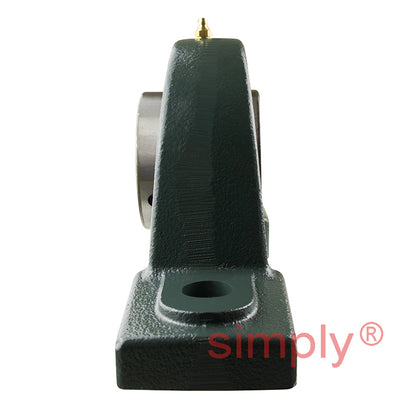

NTN UCPX14D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert
NTN UCPX14D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert
Regular price
€137,95
ex VAT
Regular price
Sale price
€137,95
ex VAT
In stock
Price Break
3+
€104,57
4+
€98,69
9+
€97,52
19+
€96,34
49+
€95,17
99+
€93,99
499+
€88,12
999+
€86,94
1999+
€85,77
2999+
€84,59
4999+
€82,24
Quantity
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCPX
- Bolt Hole Centres:
- 229mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| H | 88.9mm |
| L | 330mm |
| J | 229mm |
| A | 89mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 35mm |
| H<sub>2</sub> | 170mm |
| L<sub>1</sub> | 95mm |
| B | 77.8mm |
| S | 33.3mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 9.3 kg |
