SKU: UCPX11D1-NTN

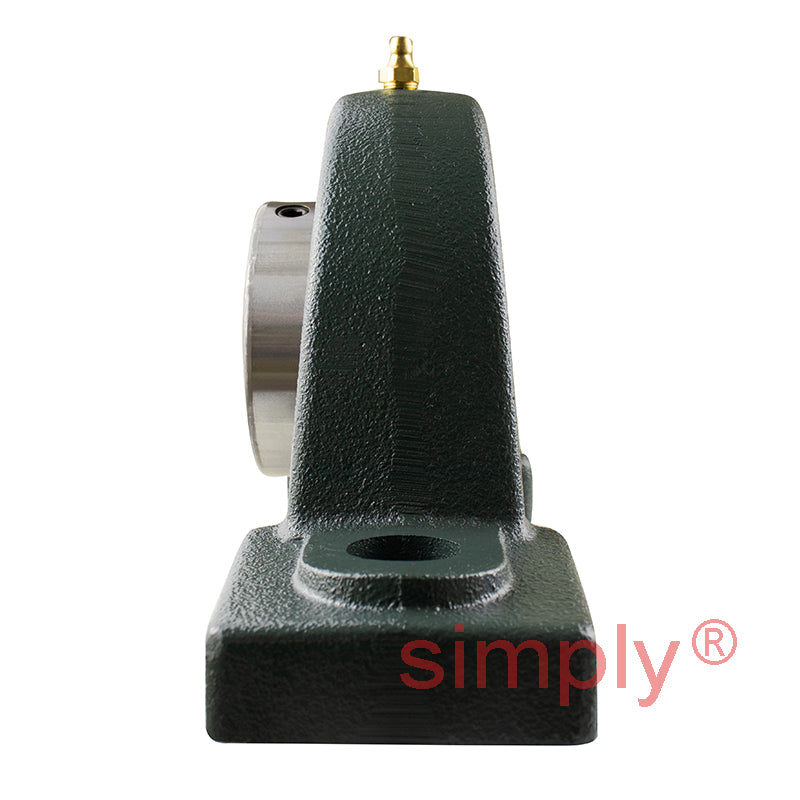

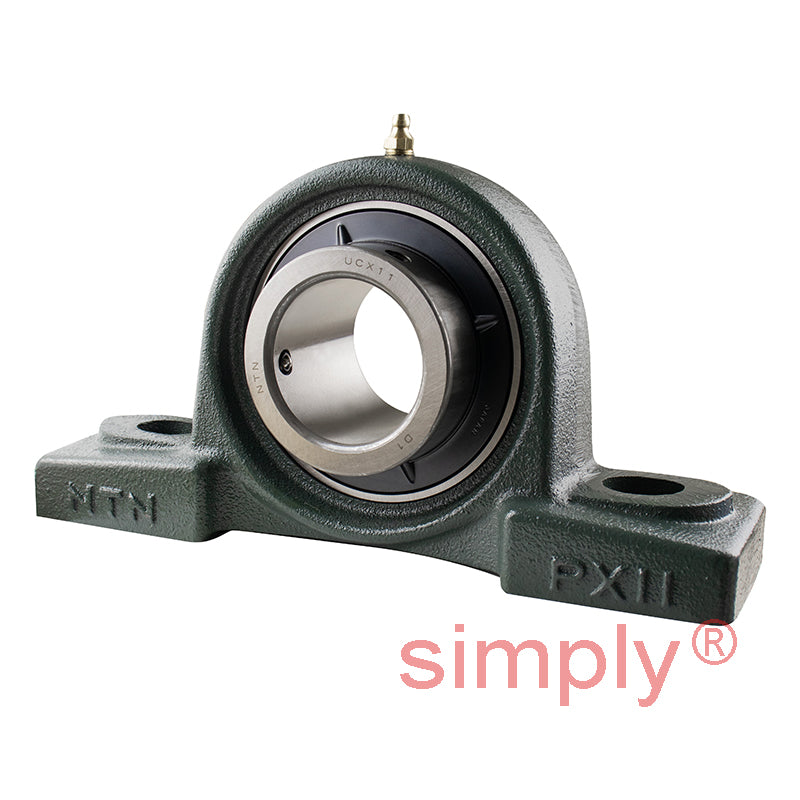

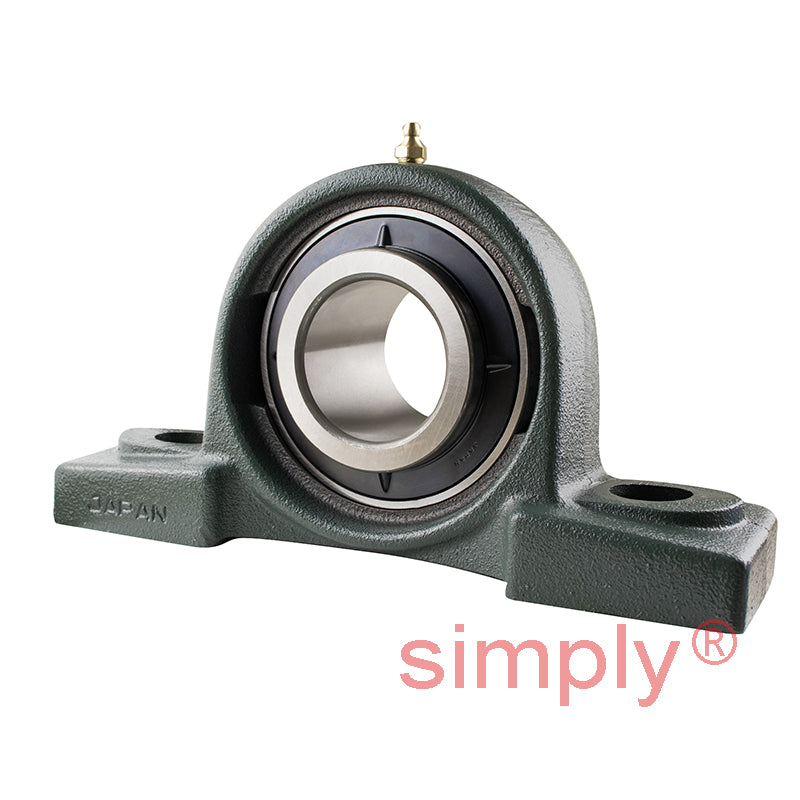

NTN UCPX11D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
NTN UCPX11D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
Regular price
€78,95
ex VAT
Regular price
Sale price
€78,95
ex VAT
In stock
Price Break
3+
€59,93
4+
€56,57
9+
€55,89
19+
€55,22
49+
€54,55
99+
€53,87
499+
€50,51
999+
€49,83
1999+
€49,16
2999+
€48,48
4999+
€47,14
Quantity
Couldn't load pickup availability
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPX
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| H | 69.8mm |
| L | 260mm |
| J | 184mm |
| A | 79mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 30mm |
| H<sub>2</sub> | 137mm |
| L<sub>1</sub> | 75mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 5.4 kg |
