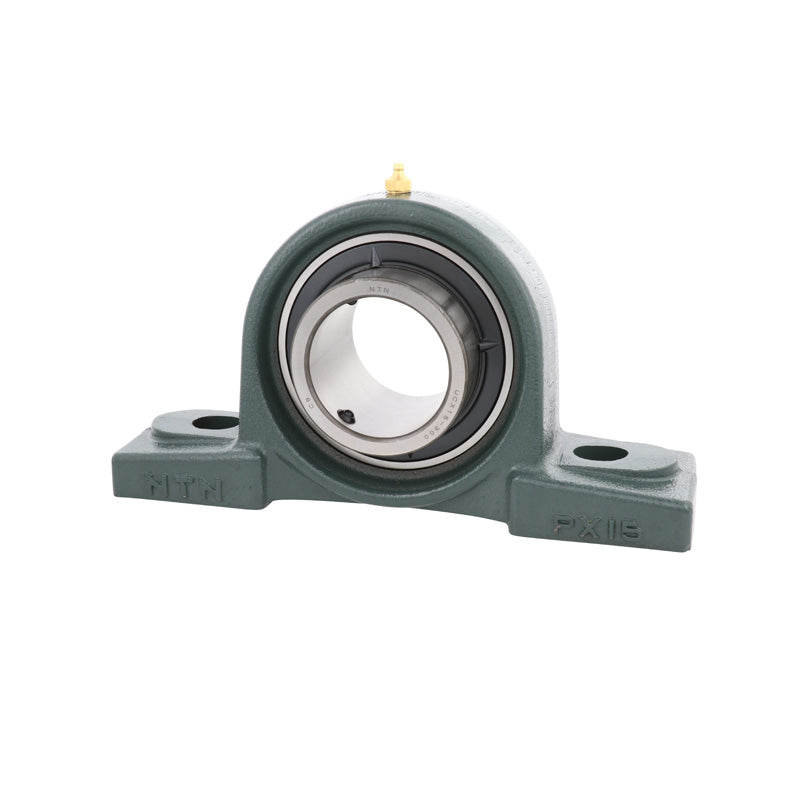

• NTN UCPX08-108D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCPX08-108D1-NTN

NTN UCPX08-108D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days

NTN UCPX08-108D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
€51,95 ex VAT
€51,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €38,88
4+ €36,69
9+ €36,25
19+ €35,82
49+ €35,38
99+ €34,94
499+ €32,76
999+ €32,32
1999+ €31,89
2999+ €31,45
4999+ €30,58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCPX
Bolt Hole Centres:
6-5/32 inch
Technical
--- Dimensions
Shaft diameter 1-1/2 inch
H 2-5/16 inch
L 8-3/4 inch
J 6-5/32 inch
A 2-5/8 inch
N 25/32 inch
N<sub>1</sub> 29/32 inch
H<sub>1</sub> 1-1/32 inch
H<sub>2</sub> 4-3/8 inch
L<sub>1</sub> 2-9/16 inch
B 1.937 inch
S 0.748 inch
Fixing bolt 5/8 inch
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 6.4 lbs
