SKU: UCPLE206-SNR

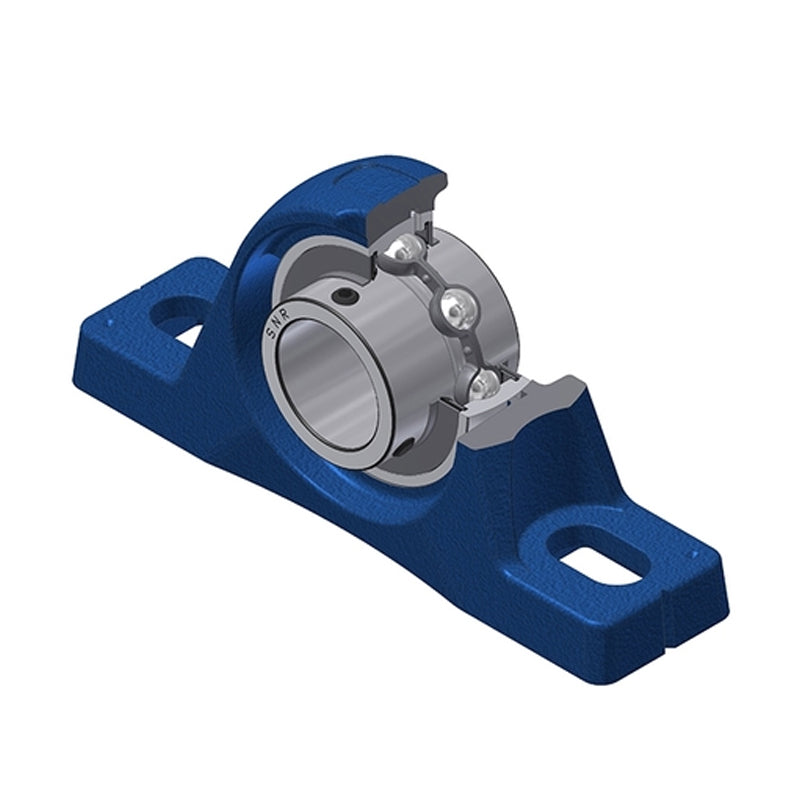

SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
3+
€22,88
4+
€21,59
9+
€21,33
19+
€21,08
49+
€20,82
99+
€20,56
499+
€19,28
999+
€19,02
1999+
€18,76
2999+
€18,51
4999+
€17,99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCPLE
- Bolt Hole Centres:
- 119mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 41.5mm |
| A1 | 27.5mm |
| B | 38.1mm |
| H | 39.7mm |
| H1 | 14.5mm |
| H2 | 79.5mm |
| J | 119mm |
| L | 161.5mm |
| N | 14mm |
| N1 | 24.5mm |
| S | 15.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.12 kg |
