SKU: UCPG212-SNR

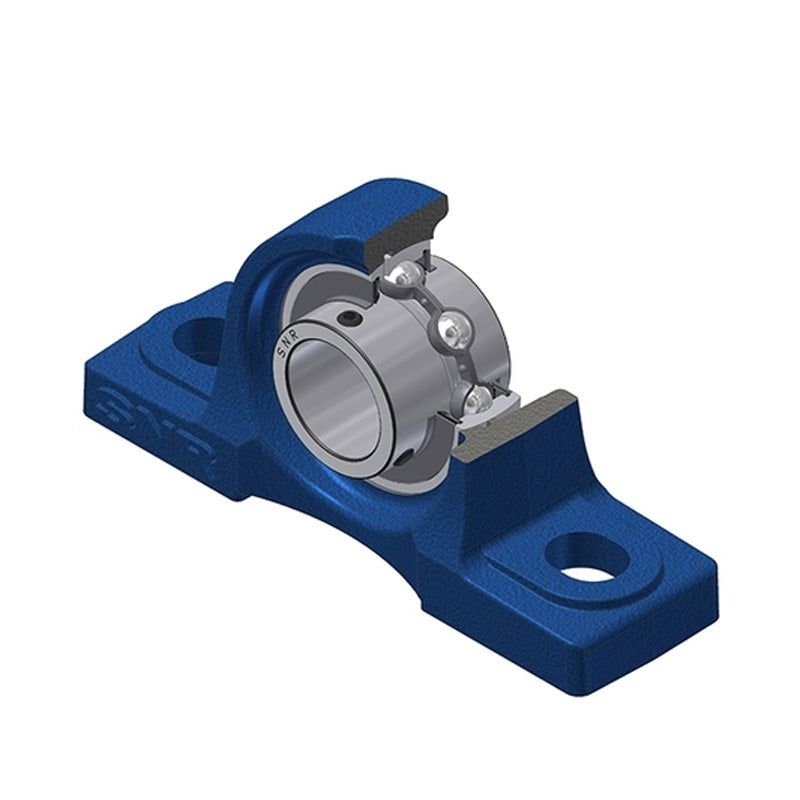

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
€79,95
ex VAT
Regular price
Sale price
€79,95
ex VAT
In stock
Price Break
3+
€60,58
4+
€57,17
9+
€56,49
19+
€55,81
49+
€55,13
99+
€54,45
499+
€51,05
999+
€50,37
1999+
€49,69
2999+
€49,01
4999+
€47,65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPG
- Bolt Hole Centres:
- 105mm
Technical
Technical

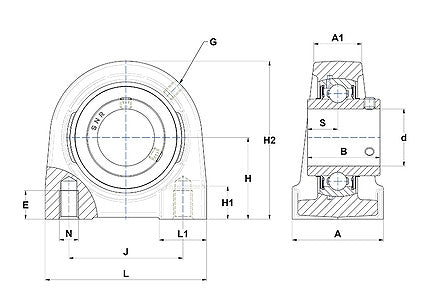

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 70mm |
| A1 | 40mm |
| B | 65.1mm |
| E | 25mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 105mm |
| L | 150mm |
| L1 | 50mm |
| N | M16 |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.63 kg |
