SKU: UCPG208-SNR

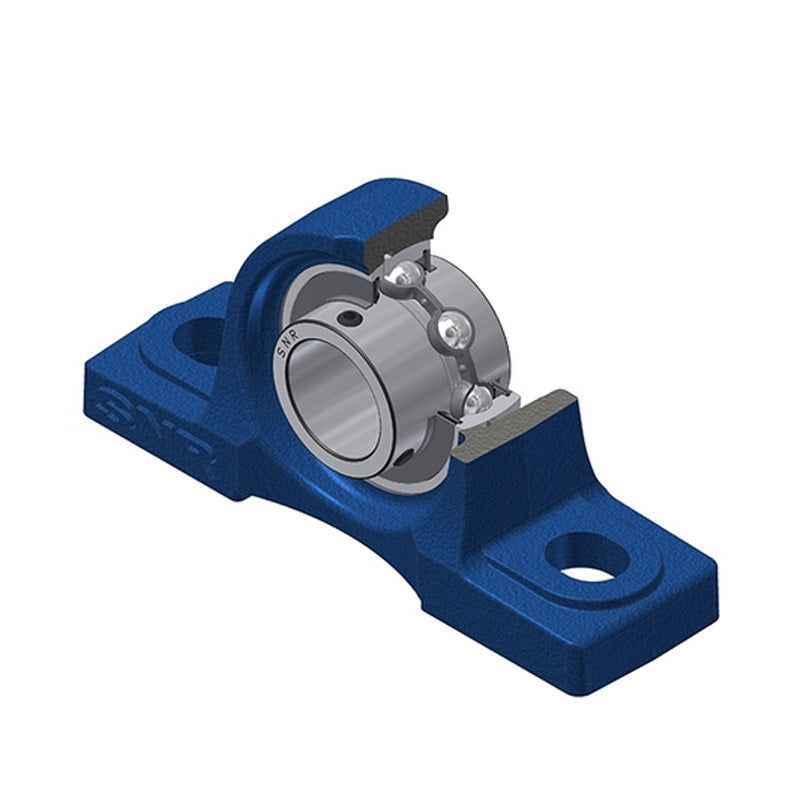

SNR UCPG208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
SNR UCPG208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
3+
€34,41
4+
€32,48
9+
€32,09
19+
€31,71
49+
€31,32
99+
€30,93
499+
€29,00
999+
€28,61
1999+
€28,23
2999+
€27,84
4999+
€27,07
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPG
- Bolt Hole Centres:
- 78mm

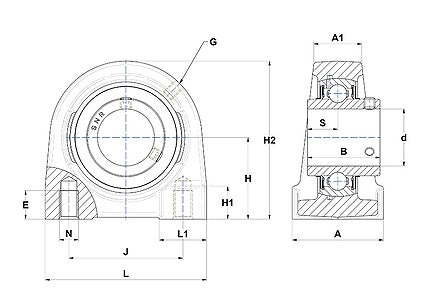

Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 49.2mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.84 kg |
