SKU: UCPG207D1-NTN

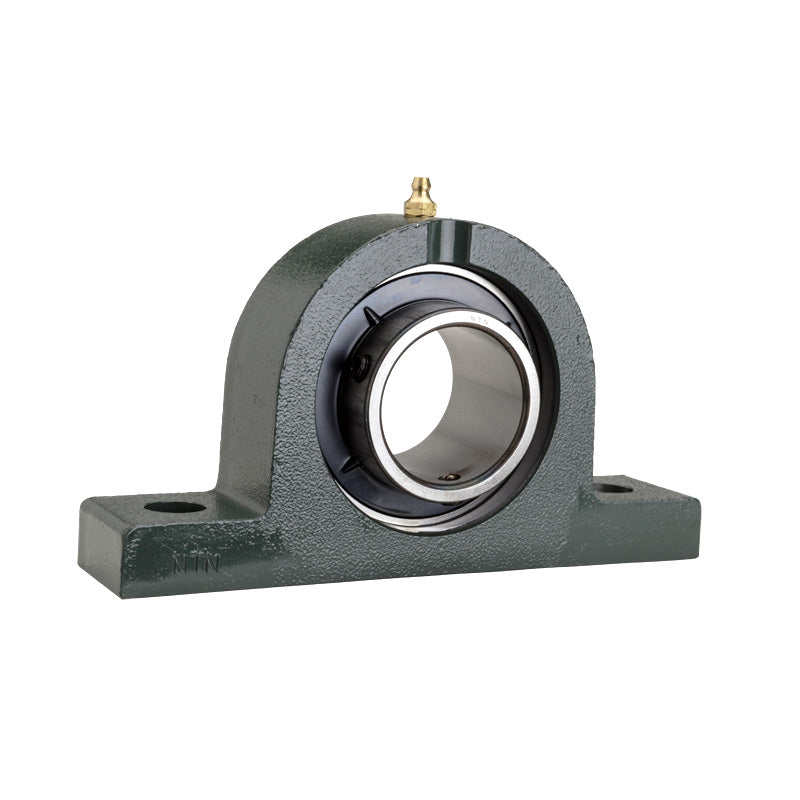

NTN UCPG207D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
NTN UCPG207D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCPG
- Bolt Hole Centres:
- 127mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 47.6mm |
| L | 167mm |
| J | 127mm |
| A | 35mm |
| N | 17mm |
| H<sub>1</sub> | 18mm |
| H<sub>2</sub> | 93mm |
| B | 42.9mm |
| S | 17.5mm |
| Fixing bolt | M14 |
| Mass | 1.7 kg |
