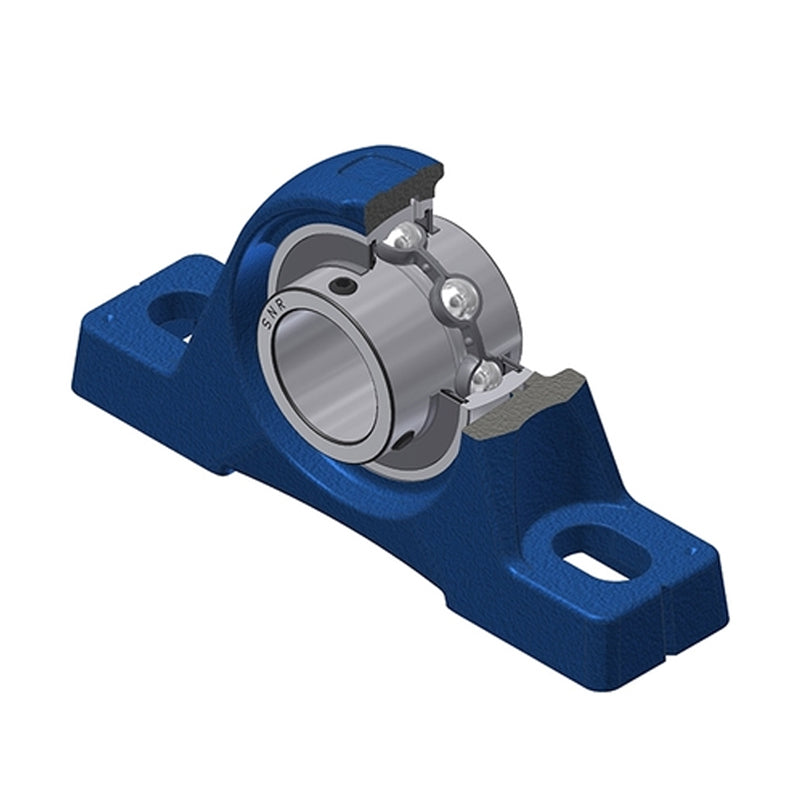

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
€158,95
ex VAT
Regular price
Sale price
€158,95
ex VAT
In stock
Price Break
3+
€120,10
4+
€113,35
9+
€112,01
19+
€110,66
49+
€109,31
99+
€107,96
499+
€101,21
999+
€99,86
1999+
€98,51
2999+
€97,16
4999+
€94,46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCPE
- Bolt Hole Centres:
- 232mm
Technical
Technical

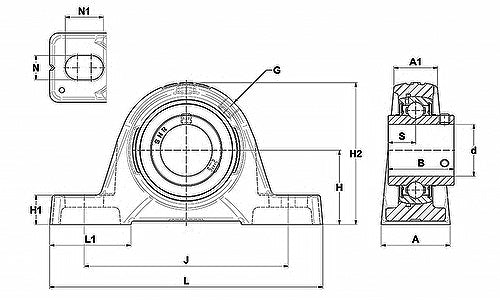

| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 78mm |
| A1 | 55mm |
| B | 82.6mm |
| H | 89mm |
| H1 | 30mm |
| H2 | 175mm |
| J | 232mm |
| L | 290mm |
| L1 | 90mm |
| N | 26mm |
| N1 | 34mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 9.09 kg |
