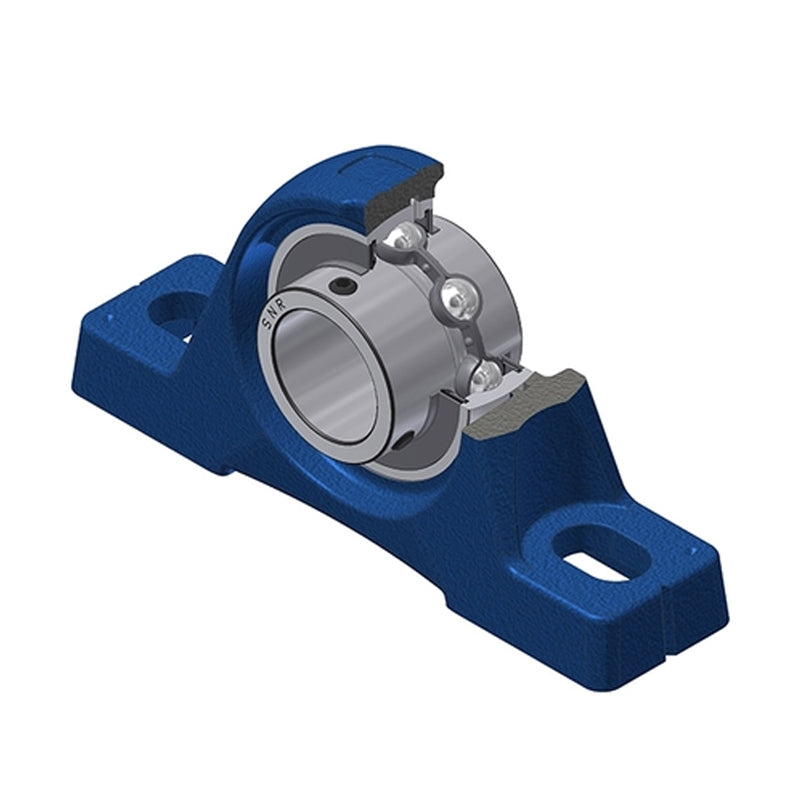

SNR UCPE214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
SNR UCPE214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
€122,95
ex VAT
Regular price
Sale price
€122,95
ex VAT
In stock
Price Break
3+
€92,94
4+
€87,72
9+
€86,67
19+
€85,63
49+
€84,59
99+
€83,54
499+
€78,32
999+
€77,28
1999+
€76,23
2999+
€75,19
4999+
€73,10
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCPE
- Bolt Hole Centres:
- 203mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| A | 65mm |
| A1 | 44mm |
| B | 74.6mm |
| H | 79.4mm |
| H1 | 27.5mm |
| H2 | 156mm |
| J | 203mm |
| L | 260mm |
| L1 | 77mm |
| N | 22mm |
| N1 | 28mm |
| S | 30.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.15 kg |
