SKU: UCP214-SNR
SNR UCP214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
SNR UCP214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€78,64
4+
€74,22
9+
€73,34
19+
€72,46
49+
€71,57
99+
€70,69
499+
€66,27
999+
€65,39
1999+
€64,50
2999+
€63,62
4999+
€61,85
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCP
- Bolt Hole Centres:
- 210mm
Technical
Technical

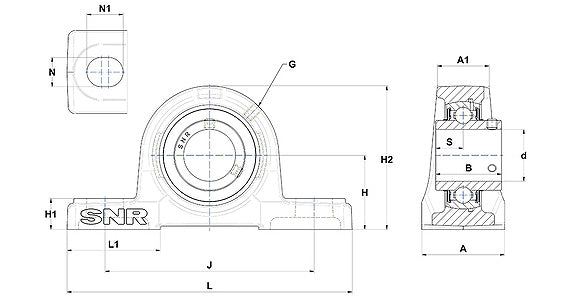

| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 72mm |
| A1 | 48mm |
| B | 74.6mm |
| H | 79.4mm |
| H1 | 27mm |
| H2 | 156mm |
| J | 210mm |
| L | 266mm |
| L1 | 83mm |
| N | 25mm |
| N1 | 31mm |
| S | 30.2mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 6.65 kg |
| Recommended tightening torque for set screw | 33 Nm |
