SKU: UCP213D1-NTN
NTN UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
NTN UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
€90,95
ex VAT
Regular price
Sale price
€90,95
ex VAT
In stock
Price Break
3+
€68,49
4+
€64,64
9+
€63,87
19+
€63,10
49+
€62,33
99+
€61,56
499+
€57,71
999+
€56,94
1999+
€56,17
2999+
€55,40
4999+
€53,87
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCP
- Bolt Hole Centres:
- 203mm
Technical
Technical

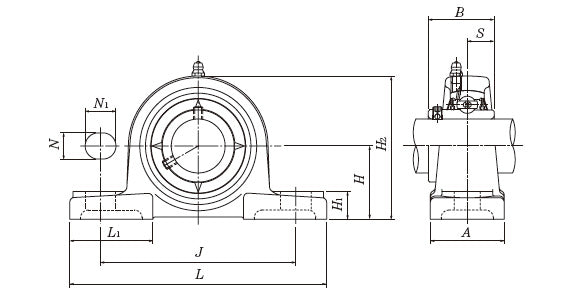

| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| H | 76.2mm |
| L | 265mm |
| J | 203mm |
| A | 70mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 151mm |
| L<sub>1</sub> | 77mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 5.6 kg |
