SKU: UCP211-32-SNR

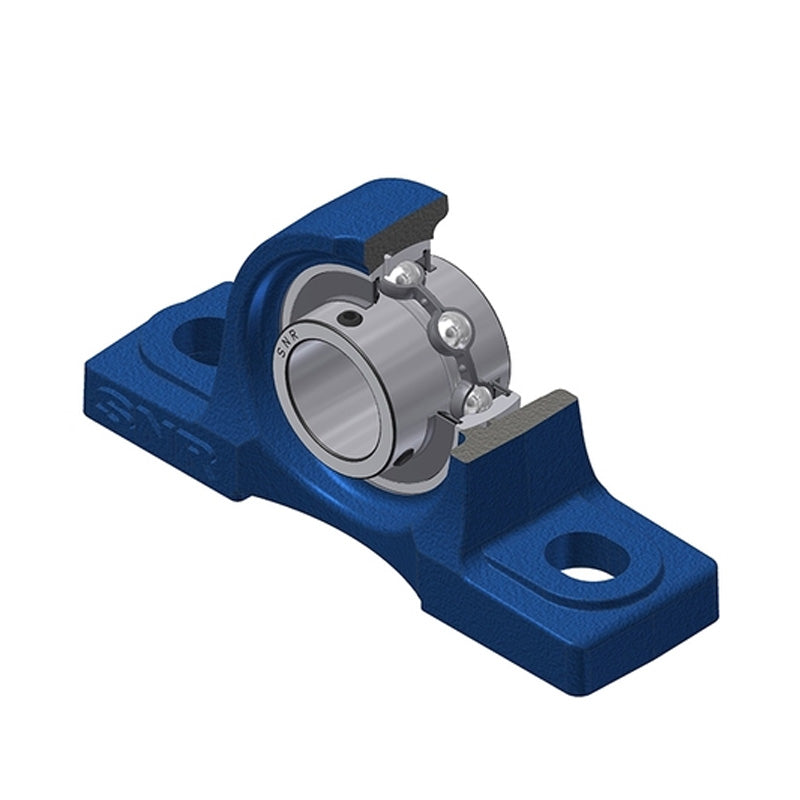

SNR UCP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert
SNR UCP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert
Regular price
€62,95
ex VAT
Regular price
Sale price
€62,95
ex VAT
In stock
Price Break
3+
€47,19
4+
€44,54
9+
€44,01
19+
€43,48
49+
€42,95
99+
€42,42
499+
€39,76
999+
€39,23
1999+
€38,70
2999+
€38,17
4999+
€37,11
Quantity
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2 inch |
| A | 60mm |
| A1 | 40mm |
| B | 55.6mm |
| H | 63.5mm |
| H1 | 22mm |
| H2 | 126mm |
| J | 171mm |
| L | 219mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 22.2mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 3.87 kg |
| Recommended tightening torque for set screw | 16.8 Nm |
