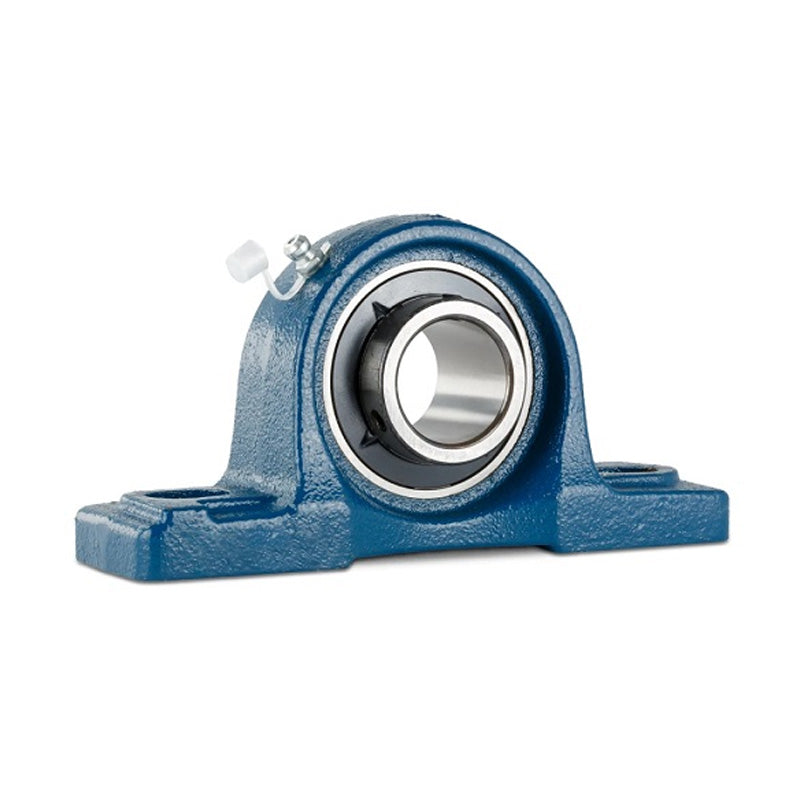

UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
3+
€79,00
4+
€74,56
9+
€73,67
19+
€72,78
49+
€71,90
99+
€71,01
499+
€66,57
999+
€65,68
1999+
€64,80
2999+
€63,91
4999+
€62,13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 250mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 85mm |
| a | 330mm |
| e | 250mm |
| b | 85mm |
| s2 | 38mm |
| s1 | 25mm |
| g | 32mm |
| w | 165mm |
| b1 | 71mm |
| n | 26mm |
| Bolt | 20mm |
| Weight | 9.4 kg |
| Dynamic load | 6420 kgf |
| Static load | 4960 kgf |
