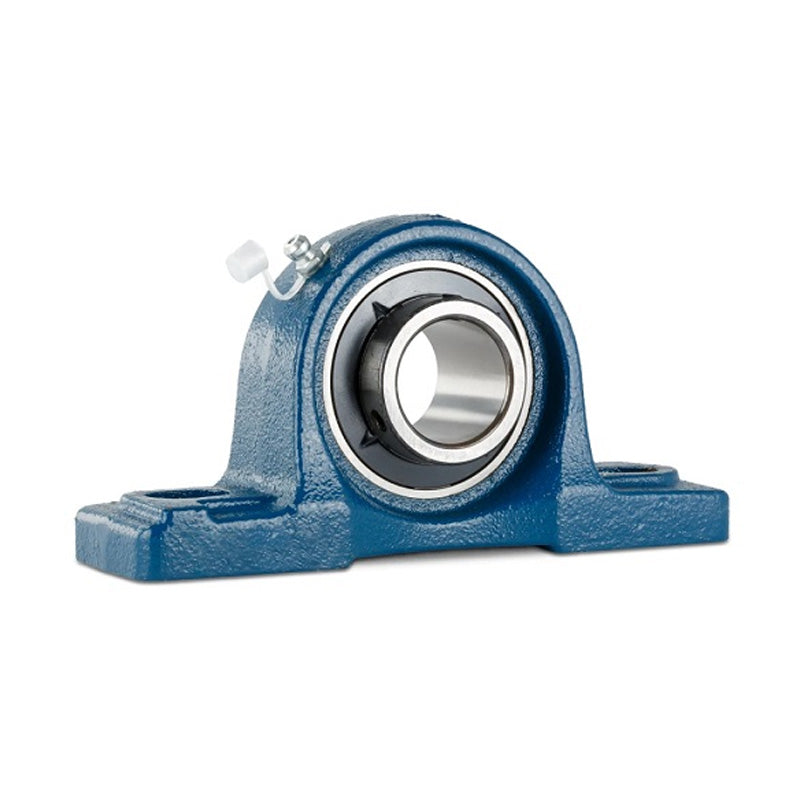

UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
Regular price
€90,95
ex VAT
Regular price
Sale price
€90,95
ex VAT
In stock
Price Break
3+
€68,66
4+
€64,80
9+
€64,03
19+
€63,26
49+
€62,49
99+
€61,71
499+
€57,86
999+
€57,09
1999+
€56,31
2999+
€55,54
4999+
€54,00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| d | 55mm |
|---|---|
| h | 80mm |
| a | 310mm |
| e | 236mm |
| b | 80mm |
| s2 | 38mm |
| s1 | 20mm |
| g | 30mm |
| w | 154mm |
| b1 | 66mm |
| n | 25mm |
| Bolt | 16mm |
| Weight | 7.8 kg |
| Dynamic load | 5620 kgf |
| Static load | 5280 kgf |
