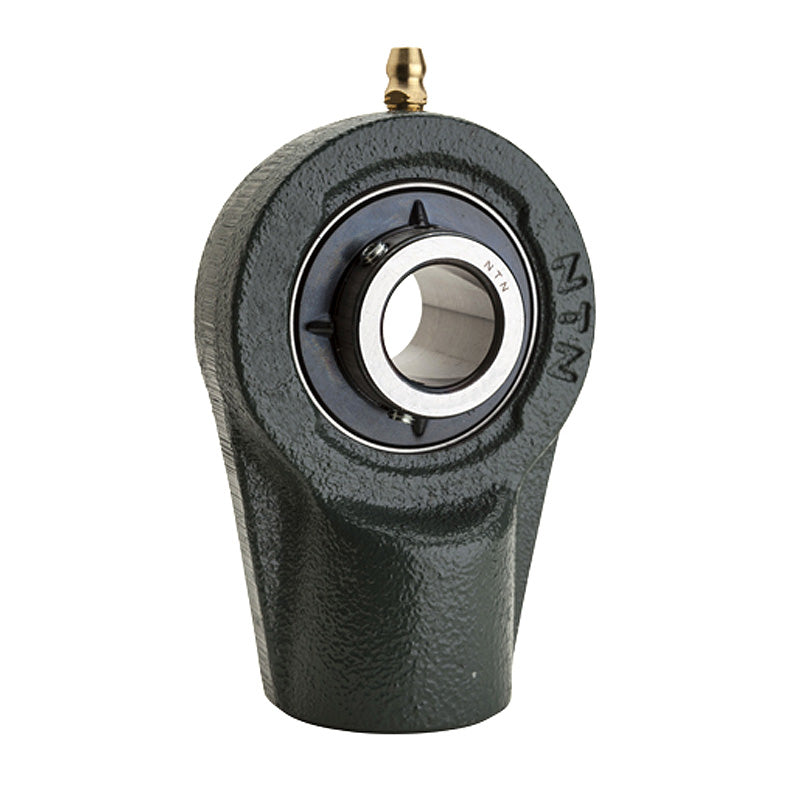

NTN UCHB212D1 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert - Allow 2-3 Days
NTN UCHB212D1 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert - Allow 2-3 Days
Regular price
€98,95
ex VAT
Regular price
Sale price
€98,95
ex VAT
In stock
Price Break
3+
€74,57
4+
€70,38
9+
€69,55
19+
€68,71
49+
€67,87
99+
€67,03
499+
€62,84
999+
€62,00
1999+
€61,17
2999+
€60,33
4999+
€58,65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCHB
Technical
Technical

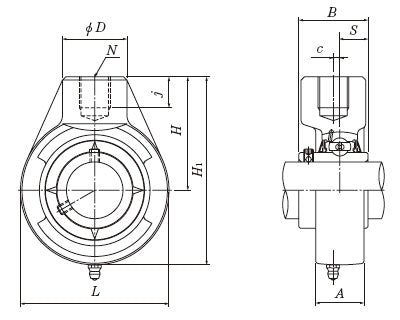

| Shaft diameter | 60mm |
|---|---|
| L | 142mm |
| H<sub>1</sub> | 173mm |
| c | 9mm |
| A | 42mm |
| H | 102mm |
| N | RP1-1/4 |
| D | 60mm |
| j | 28mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 3.7 kg |
