SKU: UCFLZ205-SNR

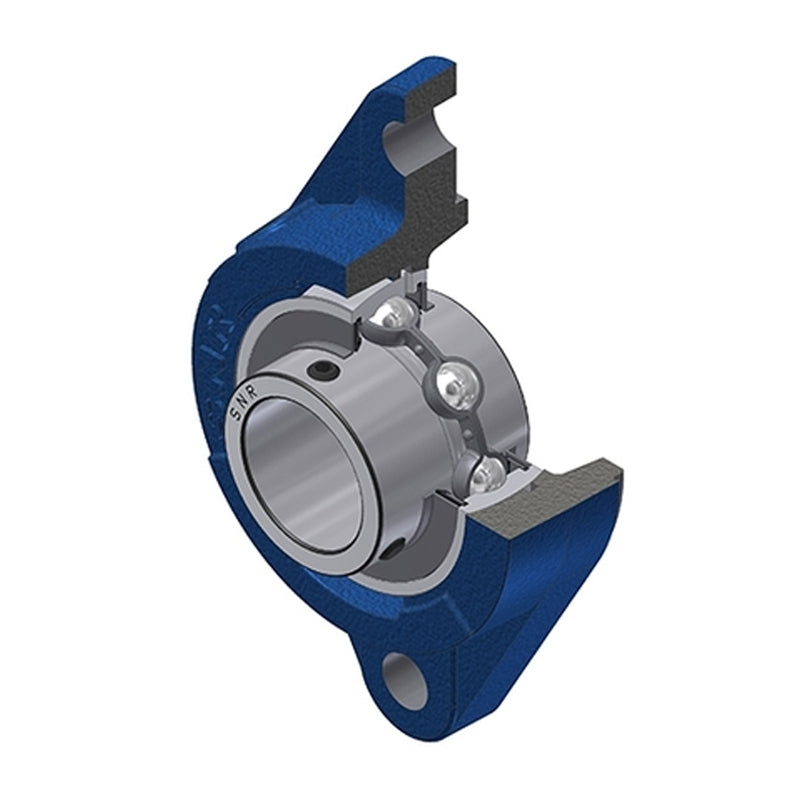

SNR UCFLZ205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
SNR UCFLZ205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
€32,95
ex VAT
Regular price
Sale price
€32,95
ex VAT
In stock
Price Break
3+
€24,78
4+
€23,39
9+
€23,11
19+
€22,83
49+
€22,56
99+
€22,28
499+
€20,88
999+
€20,61
1999+
€20,33
2999+
€20,05
4999+
€19,49
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFLZ
- Bolt Hole Centres:
- 99mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 32.5mm |
| A1 | 12mm |
| A2 | 38.7mm |
| A4 | 29mm |
| B | 34mm |
| e | 19mm |
| H | 124mm |
| H3 | 60mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| S | 14.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.71 kg |
