SNR UCFLE208 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert
SNR UCFLE208 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert
Regular price
€38,95
ex VAT
Regular price
Sale price
€38,95
ex VAT
In stock
Price Break
3+
€28,98
4+
€27,35
9+
€27,02
19+
€26,70
49+
€26,37
99+
€26,05
499+
€24,42
999+
€24,09
1999+
€23,77
2999+
€23,44
4999+
€22,79
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 143.5mm
Technical
Technical

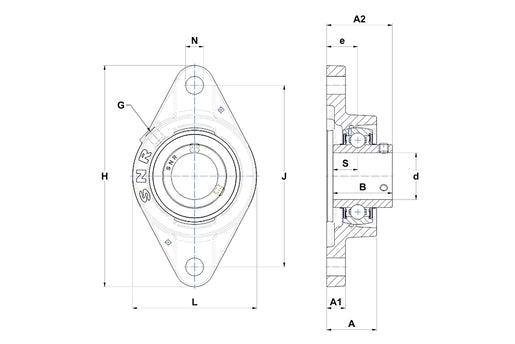

| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| H | 172mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.64 kg |
