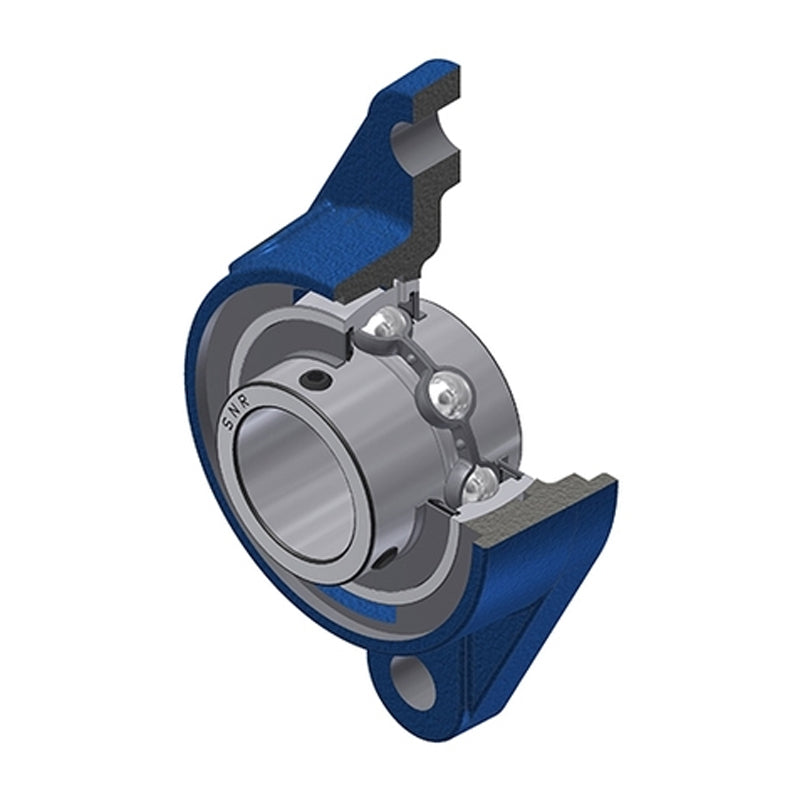

SNR UCFLE207N Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
SNR UCFLE207N Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€39,46
4+
€37,25
9+
€36,80
19+
€36,36
49+
€35,91
99+
€35,47
499+
€33,25
999+
€32,81
1999+
€32,37
2999+
€31,92
4999+
€31,04
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 33.7mm |
| A1 | 12.5mm |
| A2 | 46.4mm |
| B | 42.9mm |
| e | 21mm |
| H | 155mm |
| J | 130mm |
| L | 92mm |
| N | 14mm |
| S | 17.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.17 kg |
