SKU: UCFL207T20-SNR

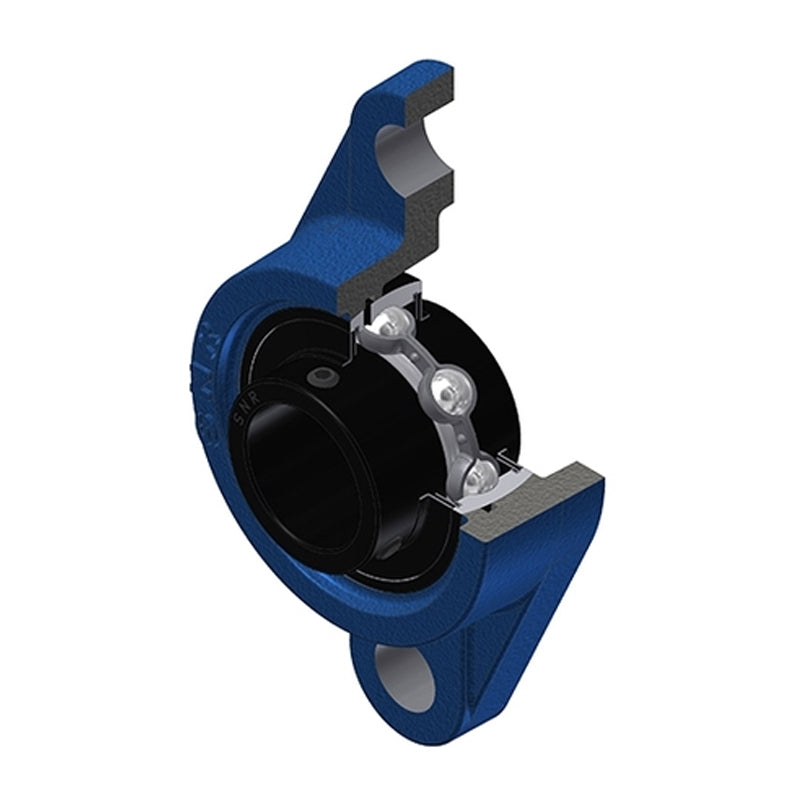

SNR UCFL207T20 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFL207T20 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
€70,95
ex VAT
Regular price
Sale price
€70,95
ex VAT
In stock
Price Break
3+
€53,48
4+
€50,47
9+
€49,87
19+
€49,27
49+
€48,67
99+
€48,07
499+
€45,07
999+
€44,47
1999+
€43,86
2999+
€43,26
4999+
€42,06
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 14mm |
| A2 | 44.4mm |
| B | 42.9mm |
| e | 19mm |
| H | 161mm |
| J | 130mm |
| L | 90mm |
| N | 16mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.17 kg |
