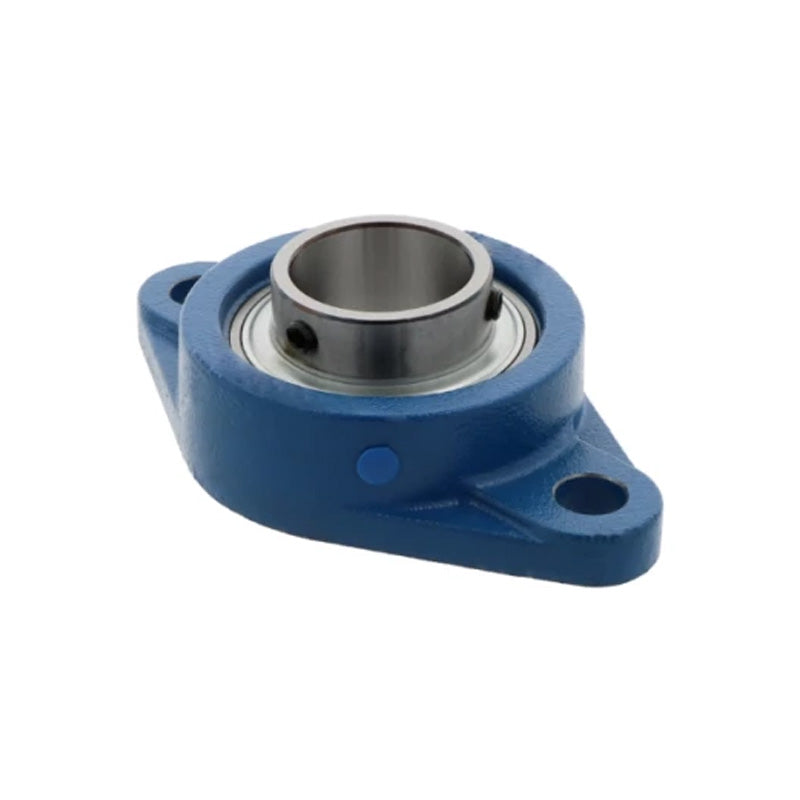

UCFL217-52 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/4 inch Bore Insert
UCFL217-52 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/4 inch Bore Insert
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 305mm |
| e | 248mm |
| i | 36mm |
| g | 22mm |
| L | 63mm |
| S | 25mm |
| b | 190mm |
| z | 87.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt Size | M22 |
| Weight | 9.6 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
