SKU: UCFL.210.TS.CHAL

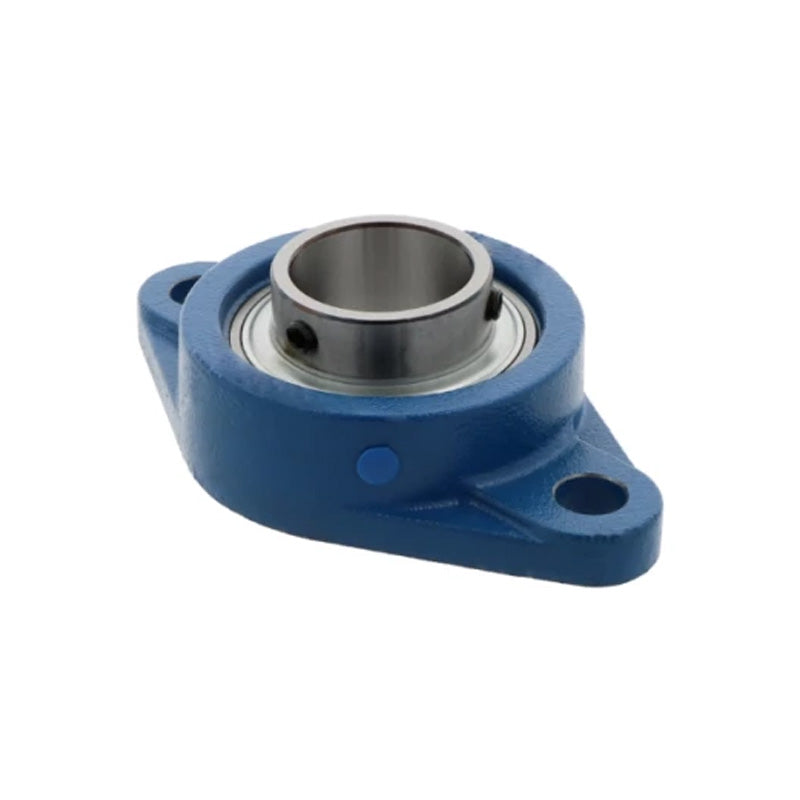

Challenge / FK UCFL210 Metric Cast Iron Two Bolt Oval Flange Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCFL210 Metric Cast Iron Two Bolt Oval Flange Housing with 50mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €79,95 ex VAT
Regular price Sale price €79,95 ex VAT
Sale Sold out

Equivalent to: UCFL.210

In stock

Price Break
3+ €60,47
5+ €57,07
9+ €56,39
19+ €55,71
49+ €55,03
74+ €54,35
99+ €50,96
199+ €50,28
249+ €49,60
499+ €48,92
999+ €47,56
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 50mm
Casting Length a 197mm
Recommended Bolt Centres L 157mm
Back of Casting to Centre Line of Bearing i 22mm
Depth of Casting at Bolt g 15mm
Overall Casting Height l 40mm
Bolt Hole Diameter s 19mm
Casting Width b 115mm
Back of Casting to Bearing Front z 54.6mm
Bearing Insert Width Bi 51.6mm
Back of Bearing to Centre Line n 19mm
Bolt Size M16
Grub Screws x 2 M10x1.25mm
Load Rating (Dynamic) 2750kg
Load Rating (Static) 2020kg
Max Speed 1800 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC210
Housing No FL210
