SKU: UCFL.205.TS.CHAL

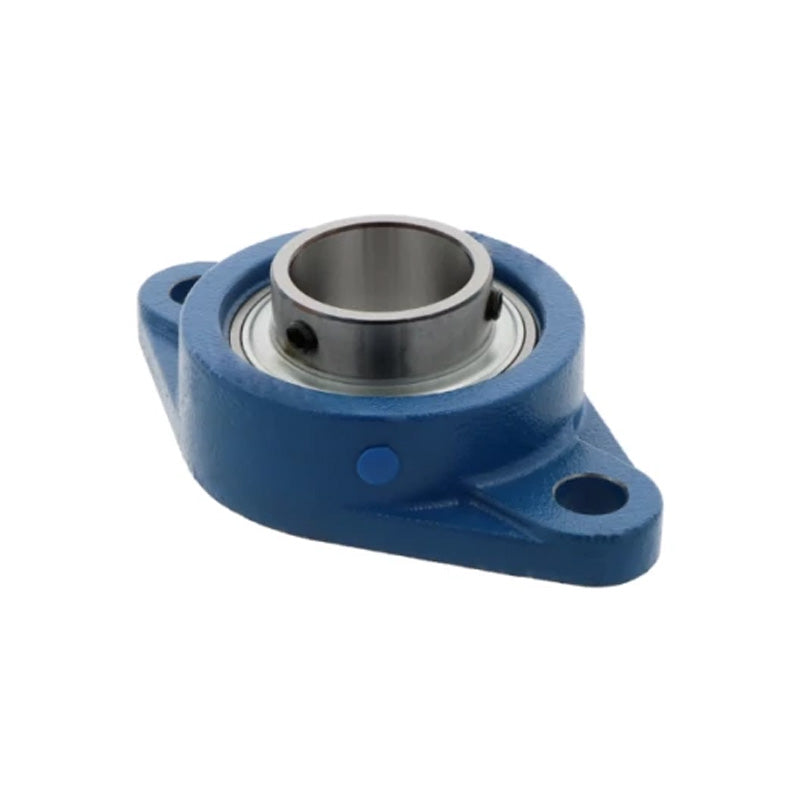

Challenge / FK UCFL205 Metric Cast Iron Two Bolt Oval Flange Housing with 25mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFL.205
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 25mm
- Style:
- UCFL
- Bolt Hole Centres:
- 99mm
Technical
| Shaft Diameter d | 25mm |
|---|---|
| Casting Length a | 130mm |
| Recommended Bolt Centres L | 99mm |
| Back of Casting to Centre Line of Bearing i | 16mm |
| Depth of Casting at Bolt g | 13mm |
| Overall Casting Height l | 27mm |
| Bolt Hole Diameter s | 16mm |
| Casting Width b | 68mm |
| Back of Casting to Bearing Front z | 35.8mm |
| Bearing Insert Width Bi | 34.1mm |
| Back of Bearing to Centre Line n | 14.3mm |
| Bolt Size | M14 |
| Grub Screws x 2 | M6x0.75mm |
| Load Rating (Dynamic) | 1100kg |
| Load Rating (Static) | 710kg |
| Max Speed | 3400 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC205 |
| Housing No | FL205 |
