SKU: UCFH206-104D1-NTN

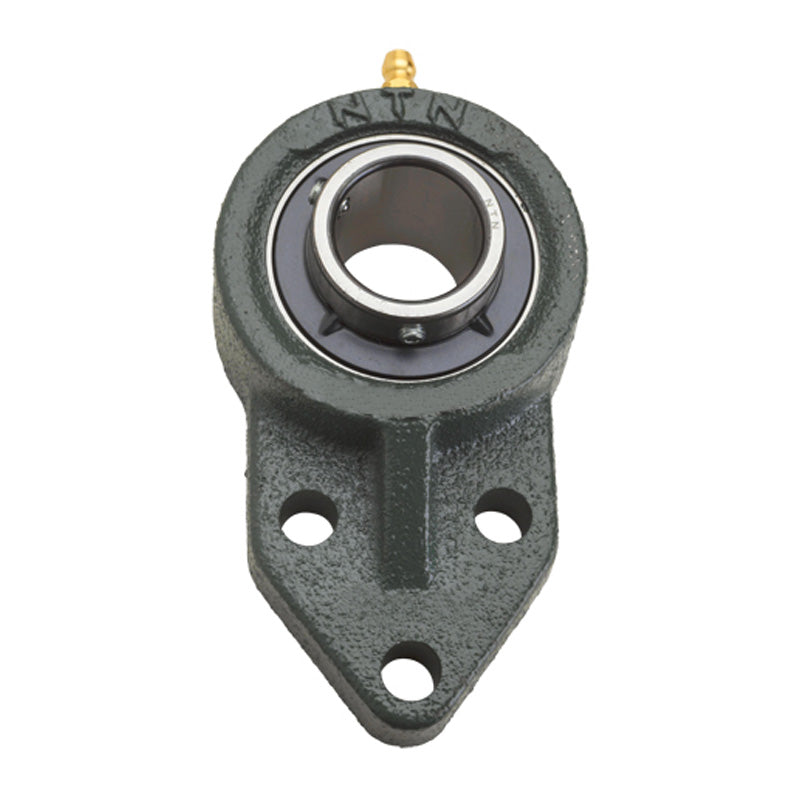

NTN UCFH206-104D1 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/4 inch Bore - Allow 2-3 Days
NTN UCFH206-104D1 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/4 inch Bore - Allow 2-3 Days
Out of stock
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFH
- Bolt Hole Centres:
- 1-37/64 inch
Technical
Technical
| Shaft diameter | 1-1/4 inch |
|---|---|
| H<sub>3</sub> | 5-1/8 inch |
| J | 1-37/64 inch |
| A<sub>2</sub> | 45/64 inch |
| A<sub>1</sub> | 1/2 inch |
| A | 1-7/32 inch |
| N | 25/64 inch |
| H | 1-31/32 inch |
| H<sub>1</sub> | 1-9/64 inch |
| L<sub>1</sub> | 2-9/16 inch |
| H<sub>2</sub> | 2-5/32 inch |
| L | 3-1/16 inch |
| A<sub>0</sub> | 1-37/64 inch |
| B | 1.5 inch |
| S | 0.626 inch |
| Fixing bolt | 5/16 inch |
| Mass | 2 lbs |
