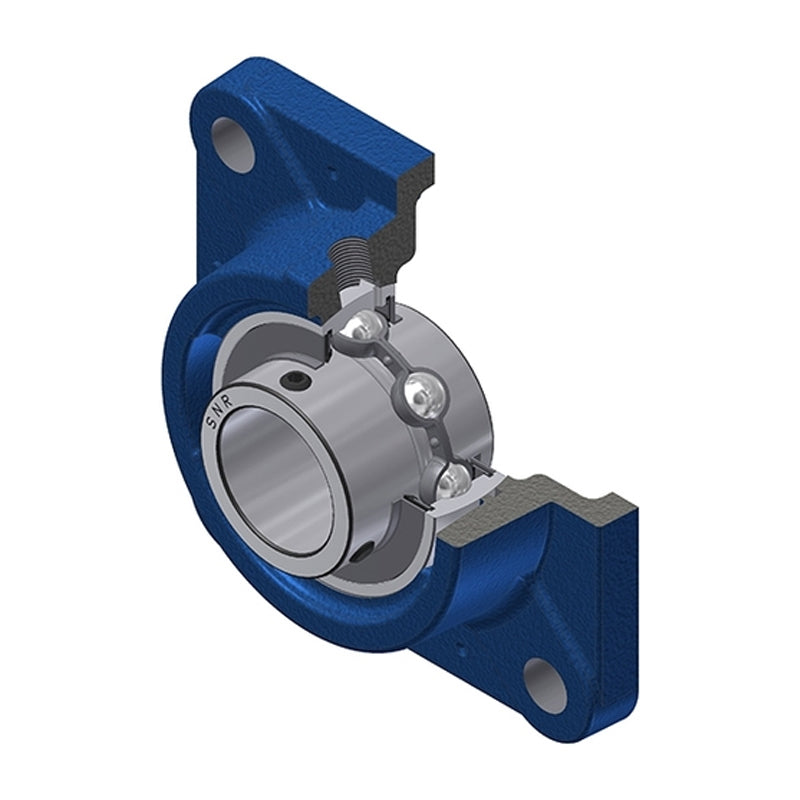

SNR UCFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
SNR UCFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
€93,95
ex VAT
Regular price
Sale price
€93,95
ex VAT
In stock
Price Break
3+
€70,92
4+
€66,93
9+
€66,14
19+
€65,34
49+
€64,54
99+
€63,75
499+
€59,76
999+
€58,97
1999+
€58,17
2999+
€57,37
4999+
€55,78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 77.7mm |
| B | 65.1mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.34 kg |
