SKU: UCFE211-32-SNR

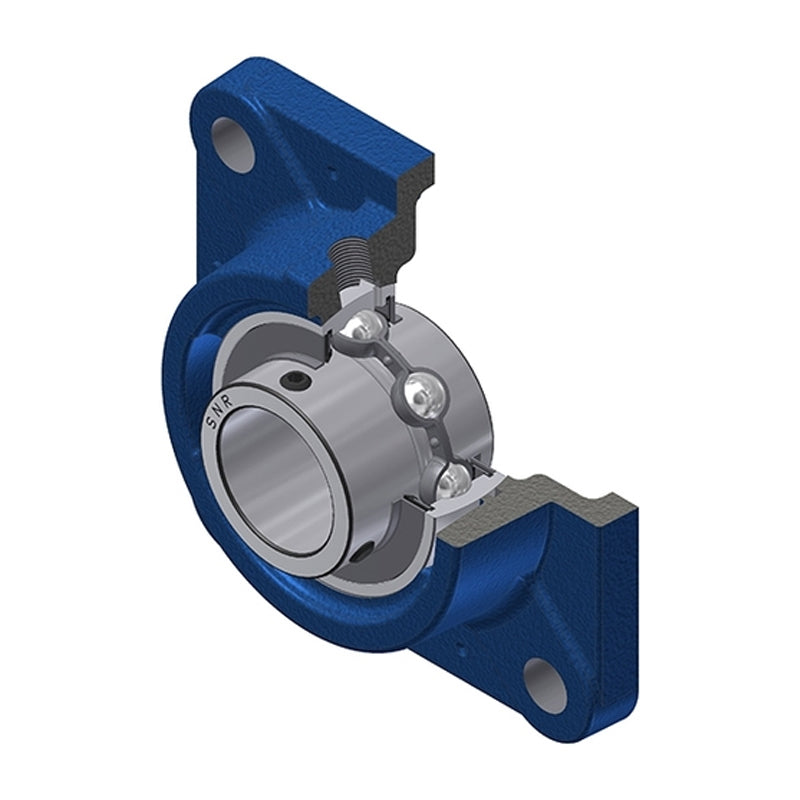

SNR UCFE211-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
SNR UCFE211-32 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
Regular price
€63,95
ex VAT
Regular price
Sale price
€63,95
ex VAT
In stock
Price Break
3+
€48,04
4+
€45,34
9+
€44,80
19+
€44,26
49+
€43,72
99+
€43,18
499+
€40,48
999+
€39,94
1999+
€39,40
2999+
€38,86
4999+
€37,78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| A | 48.5mm |
| A1 | 15mm |
| A2 | 64.4mm |
| B | 55.6mm |
| e | 31mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.81 kg |
