SKU: UCFCE209-SNR

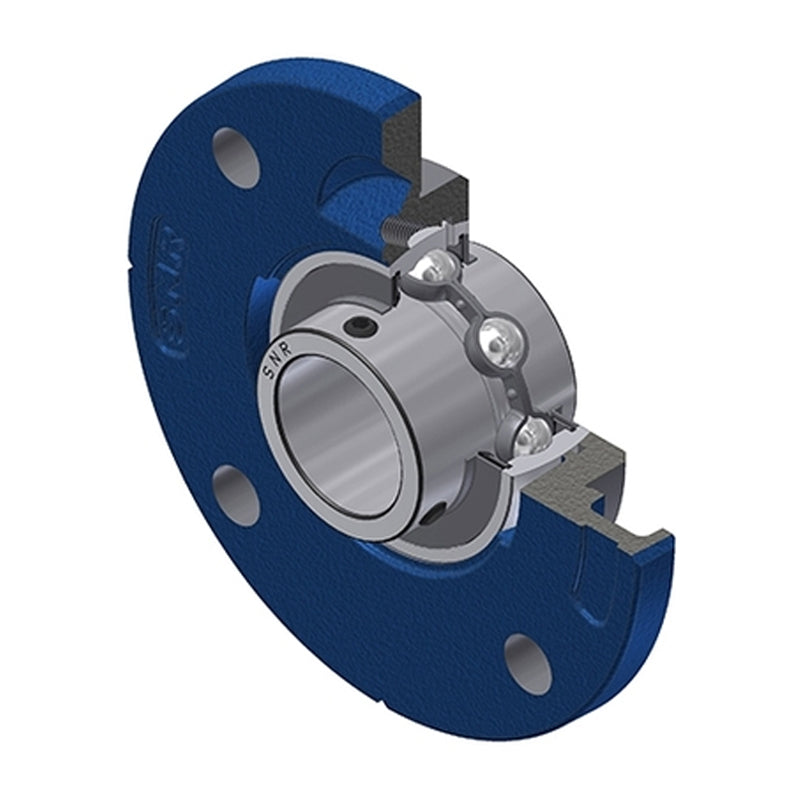

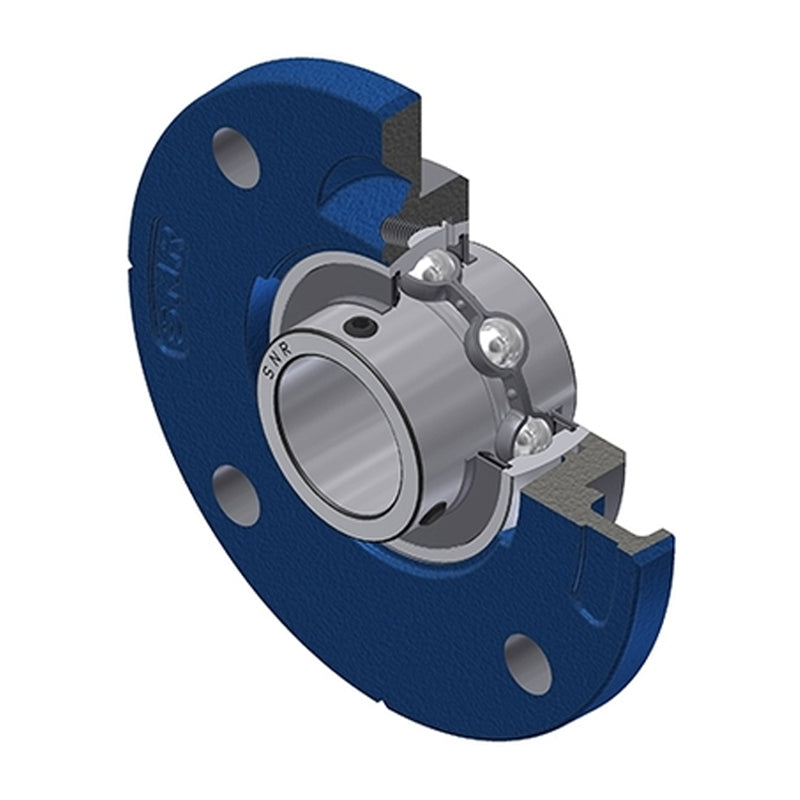

SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
Regular price
€49,95
ex VAT
Regular price
Sale price
€49,95
ex VAT
In stock
Price Break
3+
€37,75
4+
€35,63
9+
€35,20
19+
€34,78
49+
€34,35
99+
€33,93
499+
€31,81
999+
€31,38
1999+
€30,96
2999+
€30,54
4999+
€29,69
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFCE
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 25mm |
| A1 | 12mm |
| A2 | 28.2mm |
| A3 | 2mm |
| B | 49.2mm |
| e | -2mm |
| H3 | 105mm |
| J | 130mm |
| L | 155mm |
| N | 14mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.86 kg |
