SNR UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
SNR UCFC216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
Regular price
€187,95
ex VAT
Regular price
Sale price
€187,95
ex VAT
In stock
Price Break
3+
€142,36
4+
€134,36
9+
€132,76
19+
€131,16
49+
€129,56
99+
€127,97
499+
€119,97
999+
€118,37
1999+
€116,77
2999+
€115,17
4999+
€111,97
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 200mm
Technical
Technical

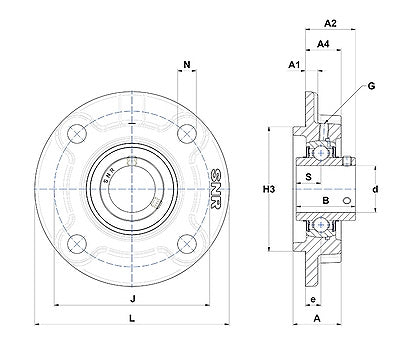

| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 58mm |
| A1 | 18mm |
| A2 | 67.3mm |
| A4 | 42mm |
| B | 82.6mm |
| e | 18mm |
| H3 | 170mm |
| J | 200mm |
| L | 240mm |
| N | 23mm |
| S | 33.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 8.94 kg |
