SNR UCFC205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
SNR UCFC205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Insert - Allow 2-3 Days
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
Low stock
Price Break
3+
€21,54
4+
€20,33
9+
€20,09
19+
€19,84
49+
€19,60
99+
€19,36
499+
€18,15
999+
€17,91
1999+
€17,67
2999+
€17,42
4999+
€16,94
Quantity
Couldn't load pickup availability
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 90mm
Technical
Technical

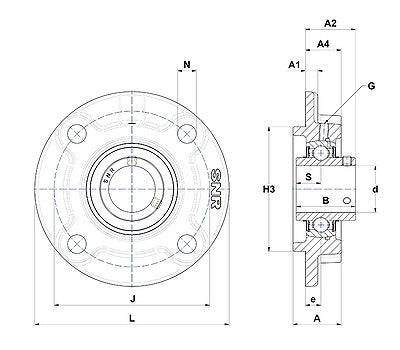

| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 7mm |
| A2 | 29.7mm |
| A4 | 21mm |
| B | 34mm |
| e | 10mm |
| H3 | 70mm |
| J | 90mm |
| L | 115mm |
| N | 12mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.97 kg |
