SKU: UCFB213

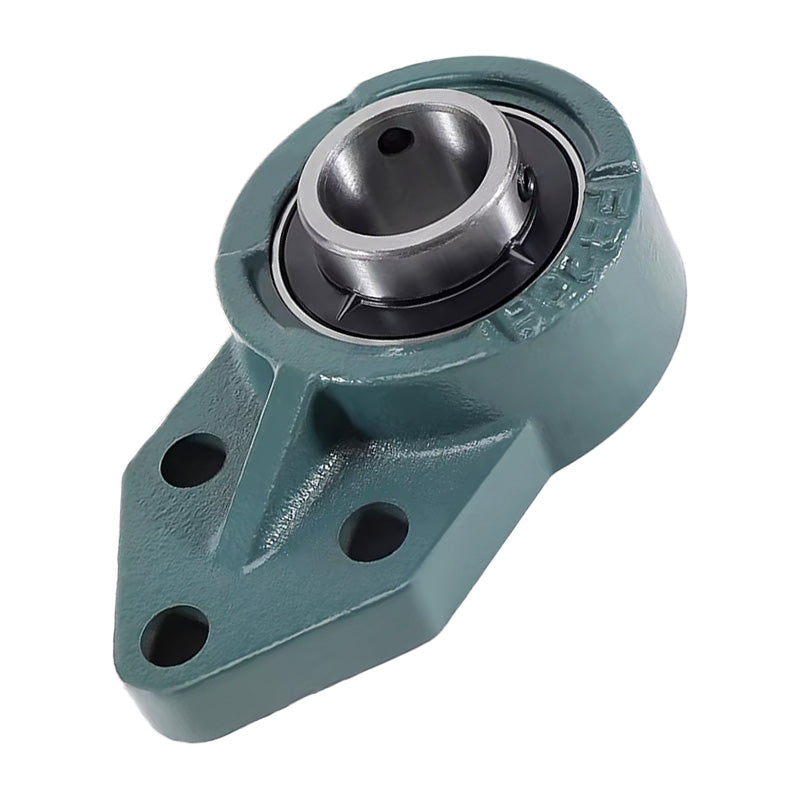

UCFB213 Metric 3 Bolt Cast Iron Bracket Flange Bearing 65mm Bore
UCFB213 Metric 3 Bolt Cast Iron Bracket Flange Bearing 65mm Bore
Out of stock
Share this product
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFB
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 65mm |
|---|---|
| w | 244mm |
| b | 155mm |
| k | 94mm |
| a | 100mm |
| l | 50mm |
| s | 14mm |
| g | 20mm |
| h | 92mm |
| j | 60mm |
| e | 70mm |
| i | 30mm |
| z | 69.7mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M12 |
| Bearing no | UC213 |
| Housing no | FB213 |
| Weight | 4.968 kg |
