SKU: UCF319-60

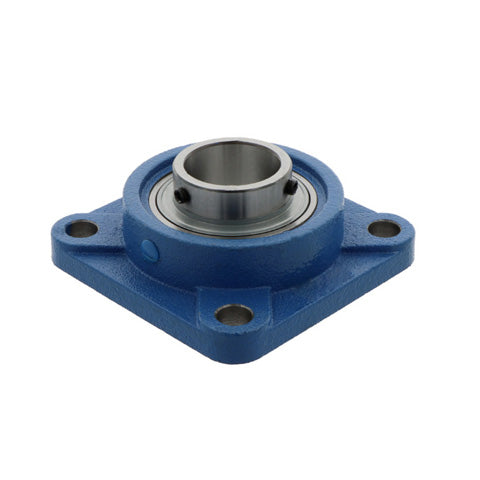

UCF319-60 Imperial Four Bolt Square Cast Iron Flange Housing with 3-3/4 inch Bore Insert
UCF319-60 Imperial Four Bolt Square Cast Iron Flange Housing with 3-3/4 inch Bore Insert
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 228mm
Technical
Technical
| d | 3-3/4 inch |
|---|---|
| a | 290mm |
| e | 228mm |
| i | 59mm |
| g | 30mm |
| l | 94mm |
| s | 35mm |
| z | 121mm |
| B | 103mm |
| n | 41mm |
| Bolt size | M30 |
| Bearing no. | UC317-60 |
| Housing no. | F319 |
| Weight | 22.8 kg |
