SKU: UCF318D1-NTN

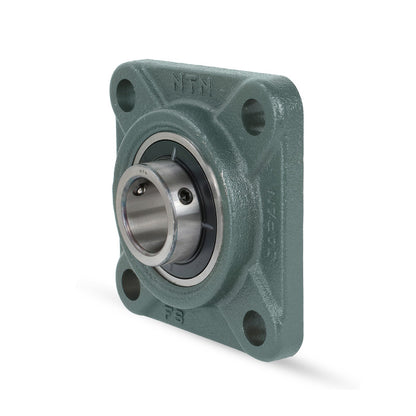

NTN UCF318D1 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
NTN UCF318D1 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
€342,95
ex VAT
Regular price
Sale price
€342,95
ex VAT
In stock
Price Break
3+
€260,52
4+
€245,88
9+
€242,96
19+
€240,03
49+
€237,10
99+
€234,18
499+
€219,54
999+
€216,61
1999+
€213,69
2999+
€210,76
4999+
€204,90
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCF
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| L | 280mm |
| J | 216mm |
| A<sub>2</sub> | 44mm |
| A<sub>1</sub> | 30mm |
| A | 76mm |
| N | 35mm |
| A<sub>0</sub> | 100mm |
| B | 96mm |
| S | 40mm |
| Fixing bolt | M30 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 158 kN |
| Static load C<sub>0r</sub> | 107 kN |
| Fatigue load limit C<sub>u</sub> | 7.1 kN |
| --- | Unit information |
| Mass | 19 kg |
