SKU: UCF316D1-NTN

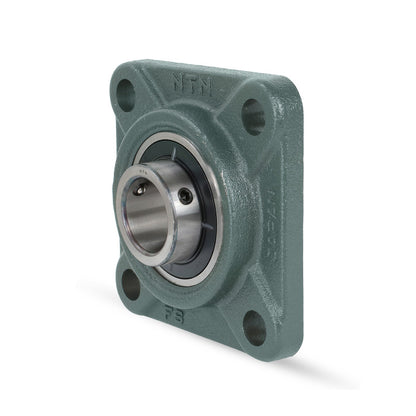

NTN UCF316D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
NTN UCF316D1 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
€273,95
ex VAT
Regular price
Sale price
€273,95
ex VAT
In stock
Price Break
3+
€207,85
4+
€196,17
9+
€193,84
19+
€191,50
49+
€189,17
99+
€186,83
499+
€175,16
999+
€172,82
1999+
€170,48
2999+
€168,15
4999+
€163,48
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCF
- Bolt Hole Centres:
- 196mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| L | 250mm |
| J | 196mm |
| A<sub>2</sub> | 38mm |
| A<sub>1</sub> | 27mm |
| A | 68mm |
| N | 31mm |
| A<sub>0</sub> | 90mm |
| B | 86mm |
| S | 34mm |
| Fixing bolt | M27 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 136 kN |
| Static load C<sub>0r</sub> | 86.5 kN |
| Fatigue load limit C<sub>u</sub> | 6.05 kN |
| --- | Unit information |
| Mass | 14 kg |
