SKU: UCF311D1-NTN

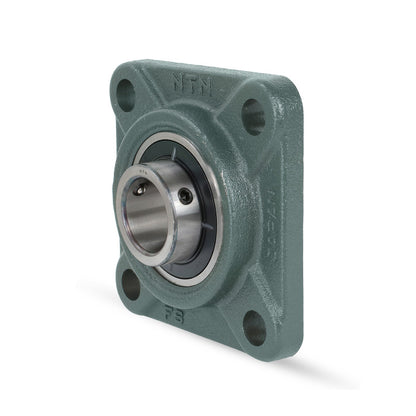

NTN UCF311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
NTN UCF311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
€120,95
ex VAT
Regular price
Sale price
€120,95
ex VAT
In stock
Price Break
3+
€91,31
4+
€86,18
9+
€85,15
19+
€84,12
49+
€83,10
99+
€82,07
499+
€76,94
999+
€75,92
1999+
€74,89
2999+
€73,86
4999+
€71,81
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCF
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| L | 185mm |
| J | 140mm |
| A<sub>2</sub> | 30mm |
| A<sub>1</sub> | 20mm |
| A | 52mm |
| N | 23mm |
| A<sub>0</sub> | 71mm |
| B | 66mm |
| S | 25mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 79.5 kN |
| Static load C<sub>0r</sub> | 45 kN |
| Fatigue load limit C<sub>u</sub> | 3.5 kN |
| --- | Unit information |
| Mass | 5.3 kg |
