SKU: UCF308D1-NTN

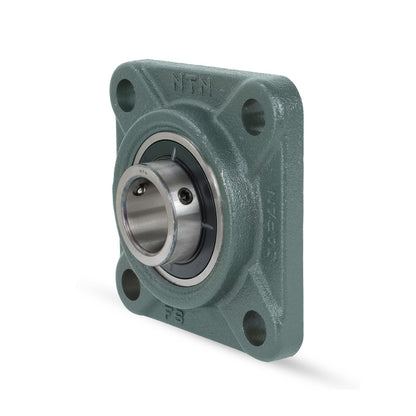

NTN UCF308D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
NTN UCF308D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
€74,95
ex VAT
Regular price
Sale price
€74,95
ex VAT
In stock
Price Break
3+
€56,70
4+
€53,52
9+
€52,88
19+
€52,24
49+
€51,61
99+
€50,97
499+
€47,78
999+
€47,15
1999+
€46,51
2999+
€45,87
4999+
€44,60
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 112mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 150mm |
| J | 112mm |
| A<sub>2</sub> | 23mm |
| A<sub>1</sub> | 17mm |
| A | 40mm |
| N | 19mm |
| A<sub>0</sub> | 56mm |
| B | 52mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 45 kN |
| Static load C<sub>0r</sub> | 24 kN |
| Fatigue load limit C<sub>u</sub> | 1.83 kN |
| --- | Unit information |
| Mass | 2.7 kg |
