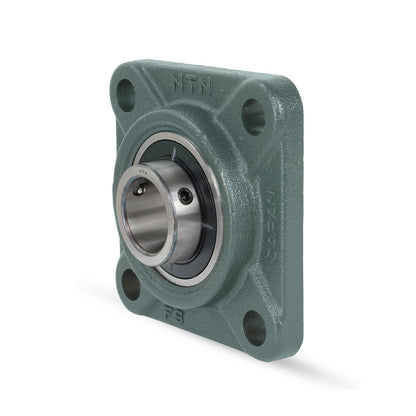

NTN UCF305D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert
NTN UCF305D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
3+
€35,34
4+
€33,36
9+
€32,96
19+
€32,56
49+
€32,17
99+
€31,77
499+
€29,78
999+
€29,39
1999+
€28,99
2999+
€28,59
4999+
€27,80
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCF
- Bolt Hole Centres:
- 80mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| L | 110mm |
| J | 80mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 29mm |
| N | 16mm |
| A<sub>0</sub> | 39mm |
| B | 38mm |
| S | 15mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 23.5 kN |
| Static load C<sub>0r</sub> | 10.9 kN |
| Fatigue load limit C<sub>u</sub> | 0.855 kN |
| --- | Unit information |
| Mass | 1.1 kg |
