SKU: UCF215D1-NTN

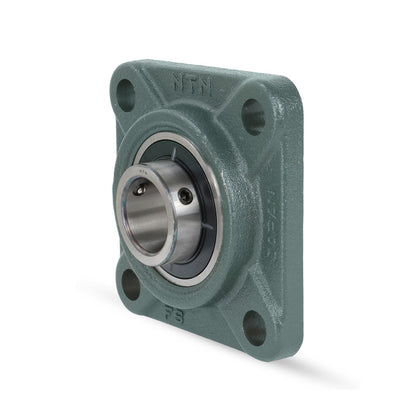

NTN UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
NTN UCF215D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
€124,95
ex VAT
Regular price
Sale price
€124,95
ex VAT
In stock
Price Break
3+
€94,25
4+
€88,96
9+
€87,90
19+
€86,84
49+
€85,78
99+
€84,72
499+
€79,43
999+
€78,37
1999+
€77,31
2999+
€76,25
4999+
€74,13
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCF
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| L | 200mm |
| J | 159mm |
| A<sub>2</sub> | 34mm |
| A<sub>1</sub> | 22mm |
| A | 56mm |
| N | 19mm |
| A<sub>0</sub> | 78.5mm |
| B | 77.8mm |
| S | 33.3mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 6.6 kg |
