SKU: UCF213CC-SNR

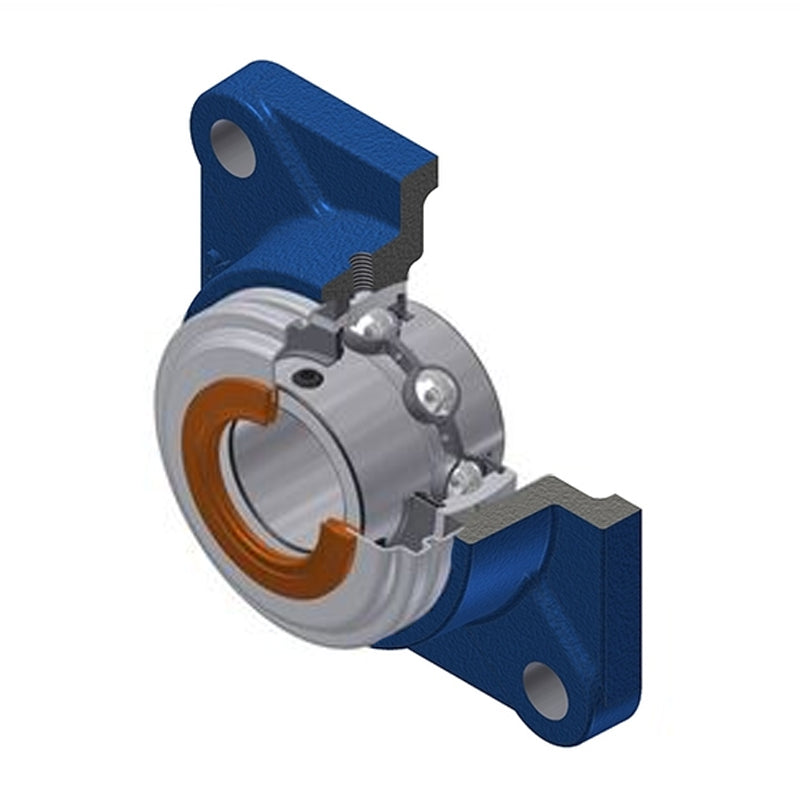

SNR UCF213CC Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCF213CC Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
€105,95
ex VAT
Regular price
Sale price
€105,95
ex VAT
In stock
Price Break
3+
€80,07
4+
€75,57
9+
€74,67
19+
€73,77
49+
€72,87
99+
€71,97
499+
€67,47
999+
€66,57
1999+
€65,67
2999+
€64,77
4999+
€62,97
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCF
- Bolt Hole Centres:
- 149mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 50mm |
| A1 | 22mm |
| A2 | 69.7mm |
| B | 65.1mm |
| e | 30mm |
| J | 149mm |
| L | 187mm |
| N | 19mm |
| S | 25.4mm |
| Dz | 132mm |
| Z | 74.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.48 kg |
