SKU: UCF211-32L3-SNR

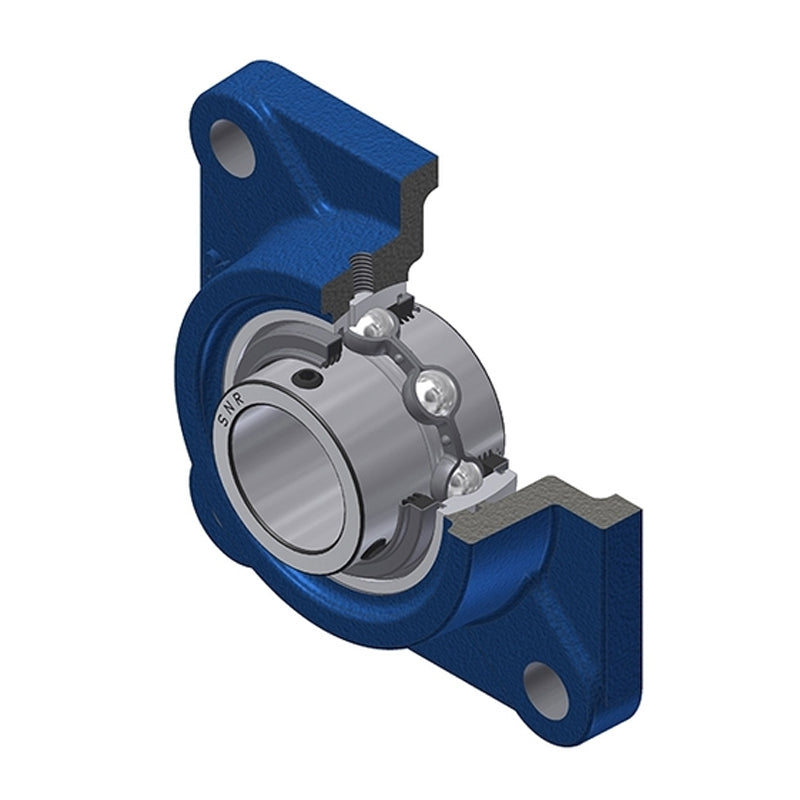

SNR UCF211-32L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCF211-32L3 Imperial Four Bolt Square Cast Iron Flange Housing with 2 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
€120,95
ex VAT
Regular price
Sale price
€120,95
ex VAT
In stock
Price Break
3+
€91,61
4+
€86,46
9+
€85,43
19+
€84,40
49+
€83,37
99+
€82,34
499+
€77,20
999+
€76,17
1999+
€75,14
2999+
€74,11
4999+
€72,05
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical

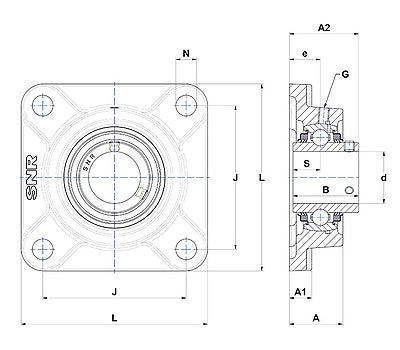

| --- | Dimensions |
|---|---|
| Shaft diameter d | 2 inch |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.46 kg |
