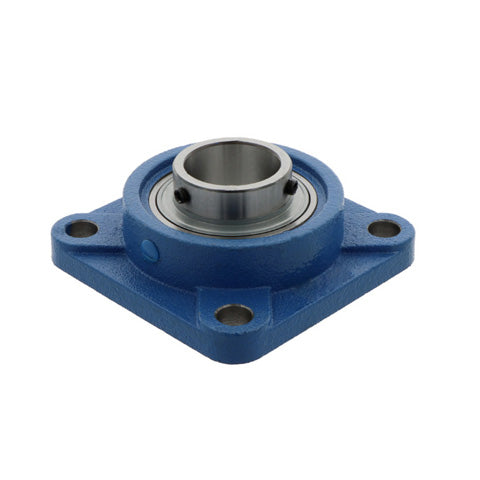

• UCF206-20 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/4 inch Bore Insert
1 1

SKU: UCF.206-20

UCF206-20 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/4 inch Bore Insert

UCF206-20 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/4 inch Bore Insert
€17,95 ex VAT
€17,95 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCF
Bolt Hole Centres:
83mm
Technical
d 1-1/4 inch
a 108mm
e 83mm
i 18mm
g 14mm
L 31mm
S 12mm
Z 40.2mm
Bi 38.1mm
n 15.9mm
Bolt Size M10
Weight 1.1 kg
Dynamic load 1520 kgf
Static load 1020 kgf
