SKU: UCEHE206-SNR
SNR UCEHE206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
SNR UCEHE206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
3+
€32,60
4+
€30,77
9+
€30,40
19+
€30,04
49+
€29,67
99+
€29,30
499+
€27,47
999+
€27,10
1999+
€26,74
2999+
€26,37
4999+
€25,64
Quantity
Couldn't load pickup availability
Share this product
Description
Description

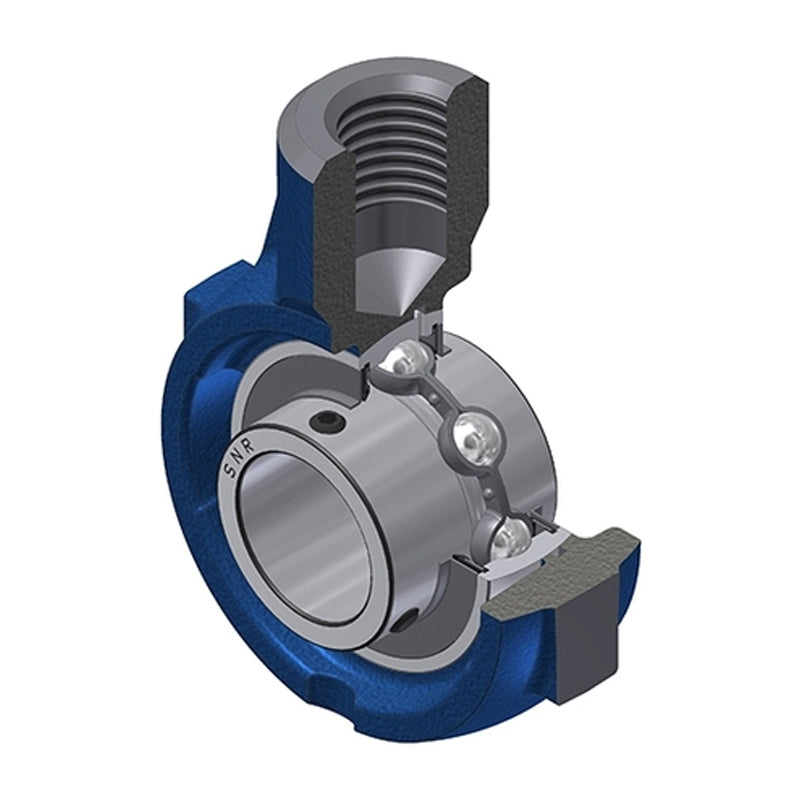

UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCEHE
Technical
Technical

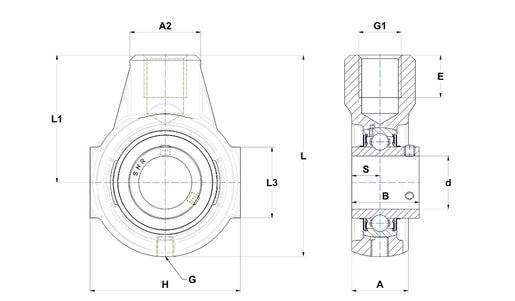

| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 32mm |
| A2 | 40mm |
| B | 38.1mm |
| E | 24mm |
| H | 85mm |
| L | 114mm |
| L1 | 72mm |
| L3 | 40mm |
| S | 15.9mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.02 kg |
