SKU: UC.218-56.TS.CHAL

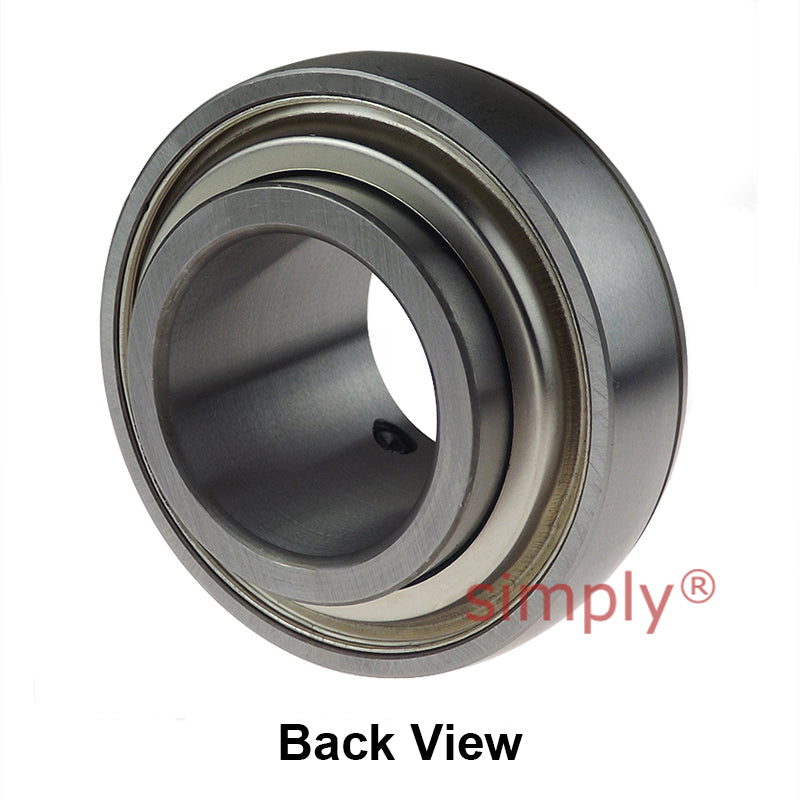

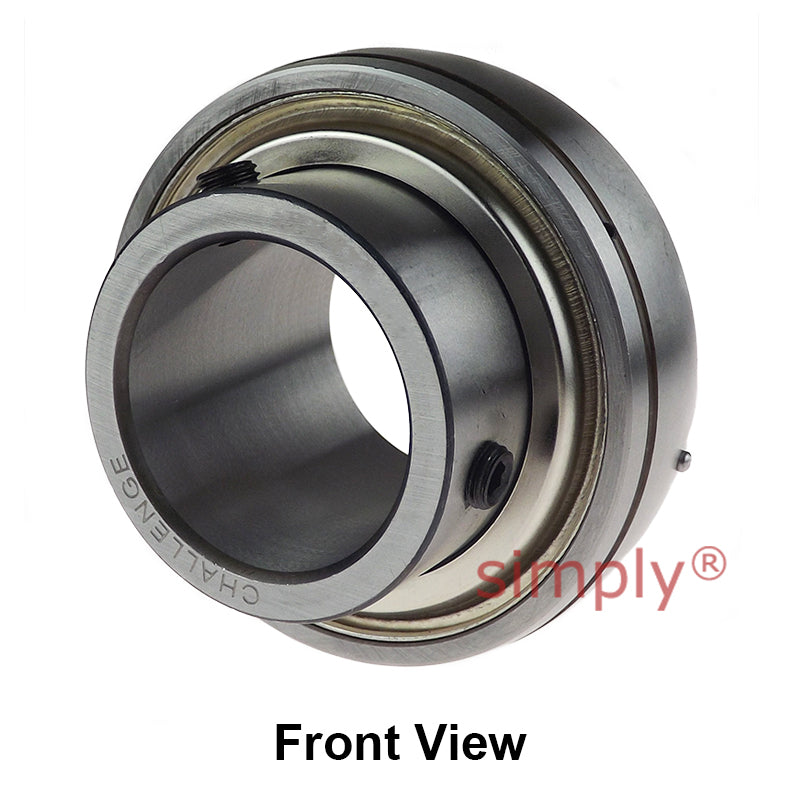

Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€392,95
ex VAT
Regular price
Sale price
€392,95
ex VAT
Equivalent to: UC.218-56
In stock
Price Break
3+
€298,25
5+
€281,50
9+
€278,15
19+
€274,80
49+
€271,44
74+
€268,09
99+
€251,34
199+
€247,99
249+
€244,63
499+
€241,28
999+
€234,58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3-1/2 inch |
|---|---|
| Outside Diameter D | 160mm |
| Overall Width Bi | 96mm |
| Inner Race Width Be | 37mm |
| Back of Bearing to Centre Line n | 39.7mm |
| Front of Bearing to Centre Line m | 56.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 1/2 - 20UNF inch |
| Load Rating (Dynamic) | 7500kg |
| Load Rating (Static) | 6170kg |
| Max Speed | 950 rev/min |
| Grease Nipple Thread Size | M10 |
| Working Temperature | -30°C to +120°C |
