SKU: UC.216.TS.CHAL

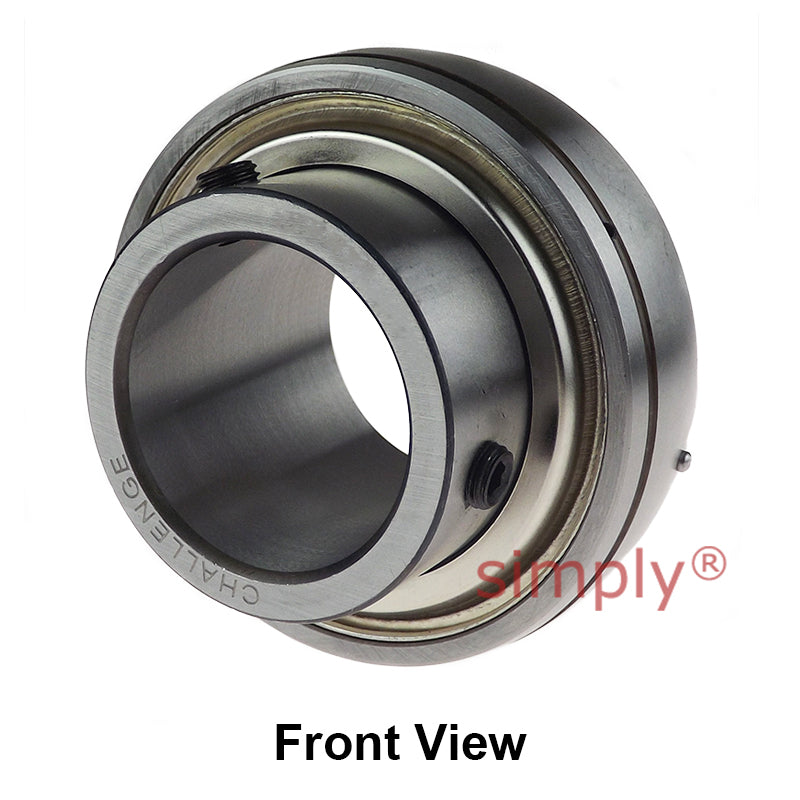

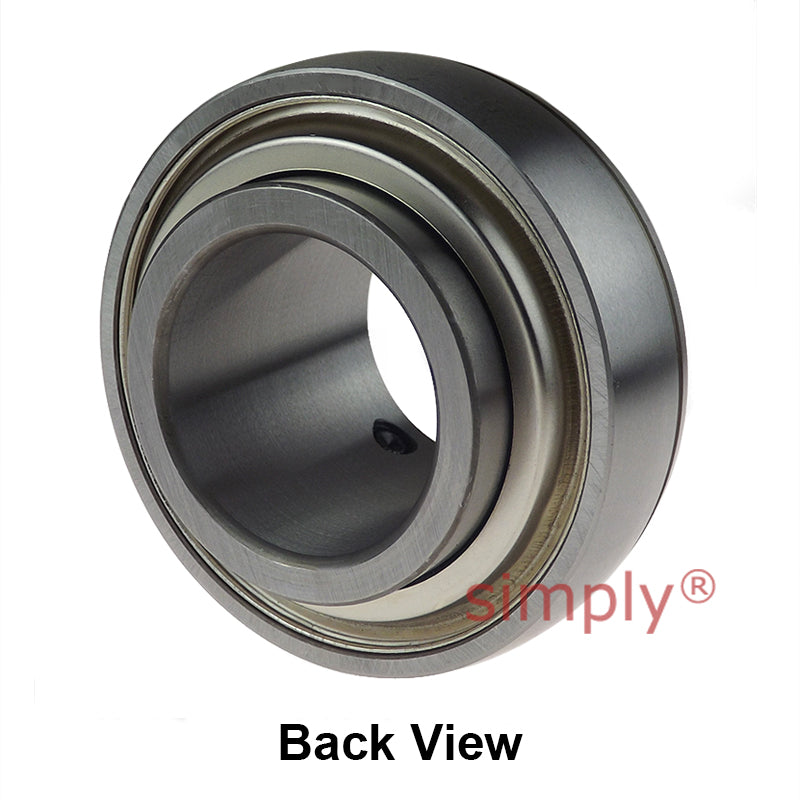

Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €267,95 ex VAT
Regular price Sale price €267,95 ex VAT
Sale Sold out

Equivalent to: UC.216

In stock

Price Break
3+ €202,91
5+ €191,51
9+ €189,23
19+ €186,95
49+ €184,67
74+ €182,39
99+ €170,99
199+ €168,71
249+ €166,43
499+ €164,15
999+ €159,59
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 80mm
Outside Diameter D 140mm
Overall Width Bi 82.6mm
Inner Race Width Be 33mm
Back of Bearing to Centre Line n 33.3mm
Front of Bearing to Centre Line m 49.3mm
Dimension G 12mm
Grub Screws x 2 M12x1.50mm
Load Rating (Dynamic) 5700kg
Load Rating (Static) 4550kg
Max Speed 1100 rev/min
Grease Nipple Thread Size M10
Working Temperature -30°C to +120°C
