SKU: UC.211-34.TS.CHAL

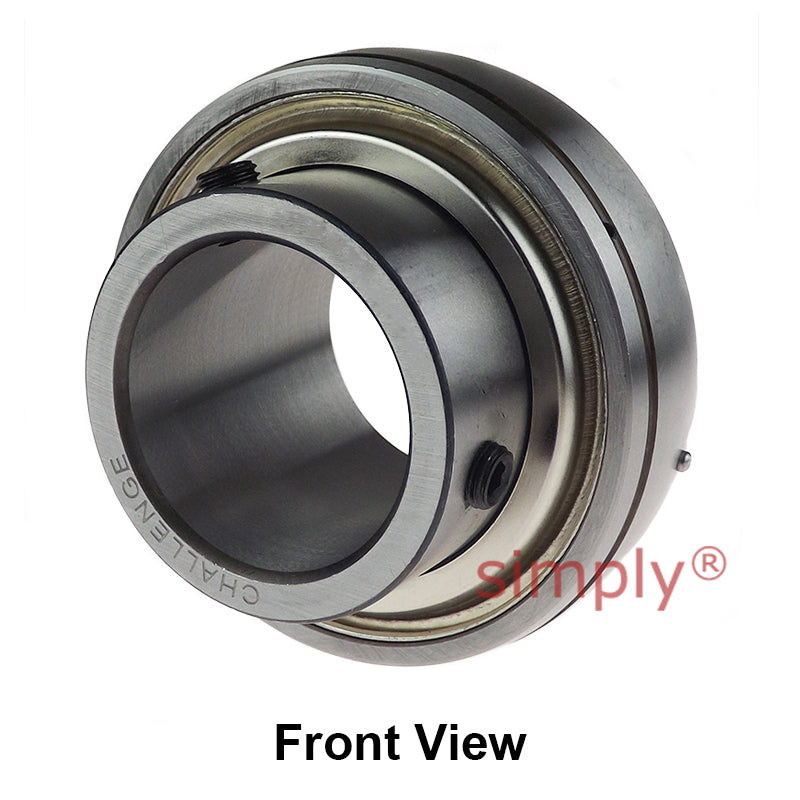

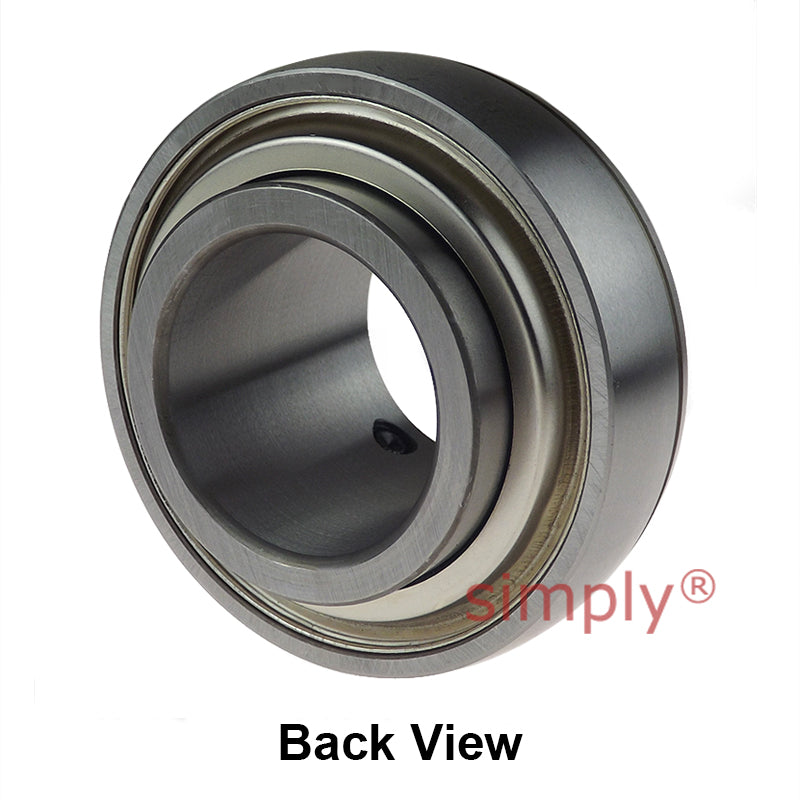

Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€67,95
ex VAT
Regular price
Sale price
€67,95
ex VAT
Equivalent to: UC.211-34
In stock
Price Break
3+
€51,47
5+
€48,58
9+
€48,00
19+
€47,42
49+
€46,84
74+
€46,26
99+
€43,37
199+
€42,79
249+
€42,22
499+
€41,64
999+
€40,48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2-1/8 inch |
|---|---|
| Outside Diameter D | 100mm |
| Overall Width Bi | 55.6mm |
| Inner Race Width Be | 25mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Front of Bearing to Centre Line m | 33.4mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 2750kg |
| Load Rating (Static) | 2020kg |
| Max Speed | 1800 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
