SKU: UC.211-32.TS.CHAL

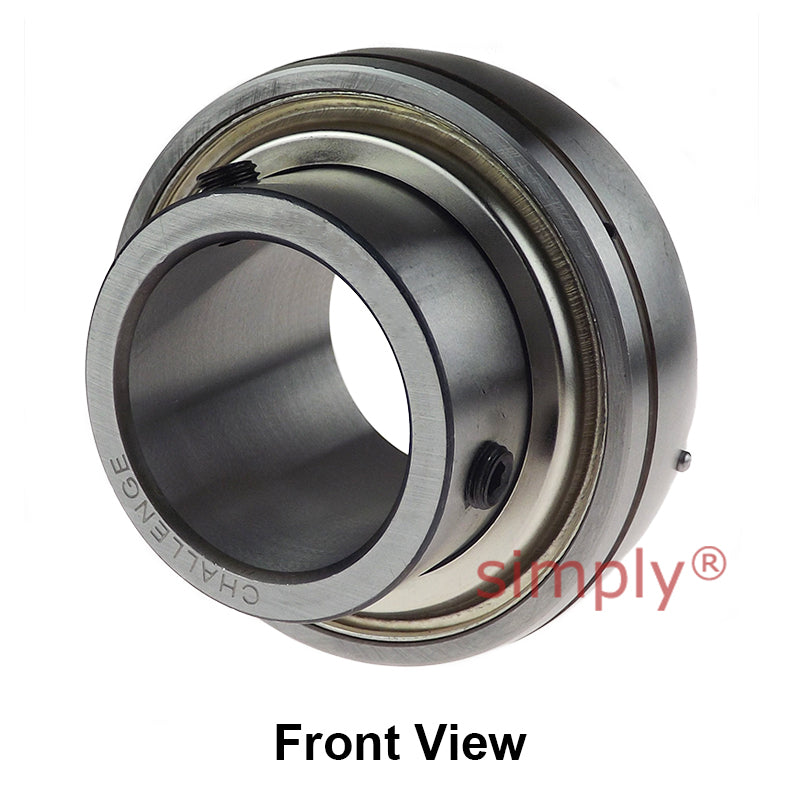

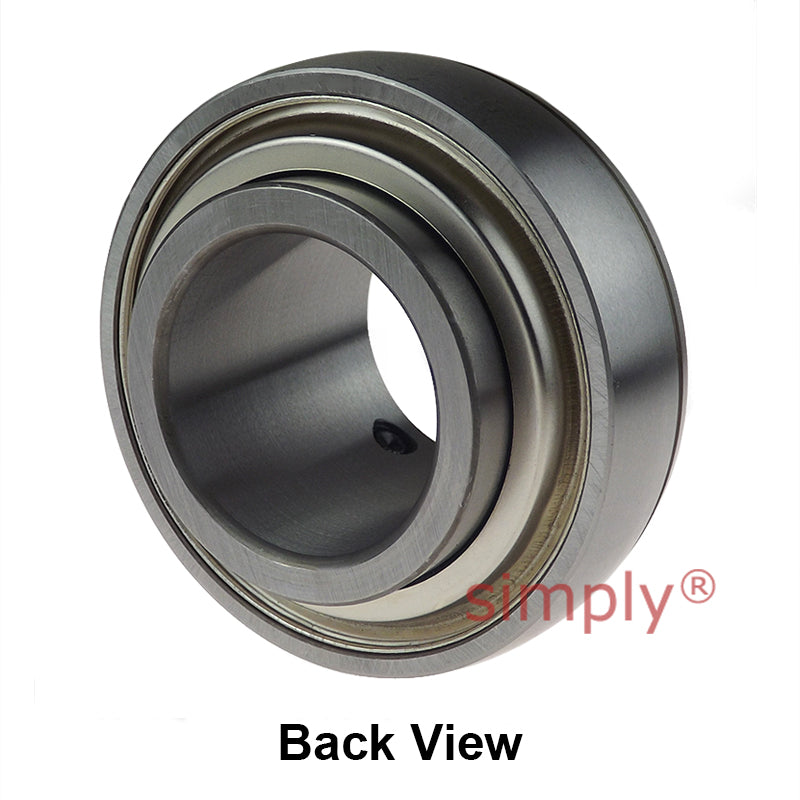

Challenge UC211-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC211-32 Imperial Insert with Grub Screws with 2 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€73,95
ex VAT
Regular price
Sale price
€73,95
ex VAT
Equivalent to: UC.211-32
In stock
Price Break
3+
€56,10
5+
€52,95
9+
€52,32
19+
€51,69
49+
€51,06
74+
€50,43
99+
€47,28
199+
€46,64
249+
€46,01
499+
€45,38
999+
€44,12
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2 inch |
|---|---|
| Outside Diameter D | 100mm |
| Overall Width Bi | 55.6mm |
| Inner Race Width Be | 25mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Front of Bearing to Centre Line m | 33.4mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1600 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
