SKU: UC.209.TS.CHAL

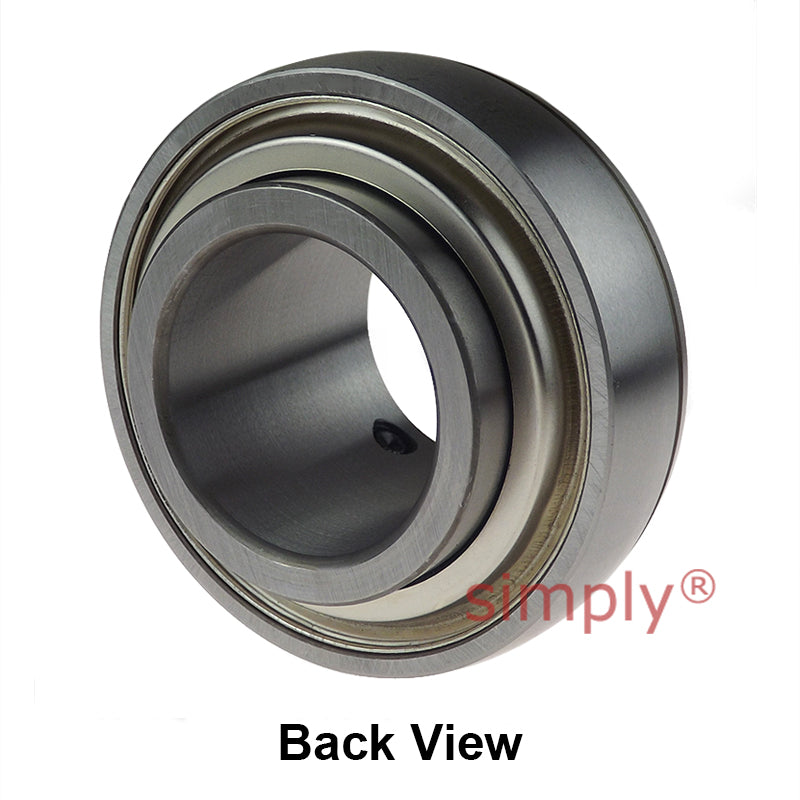

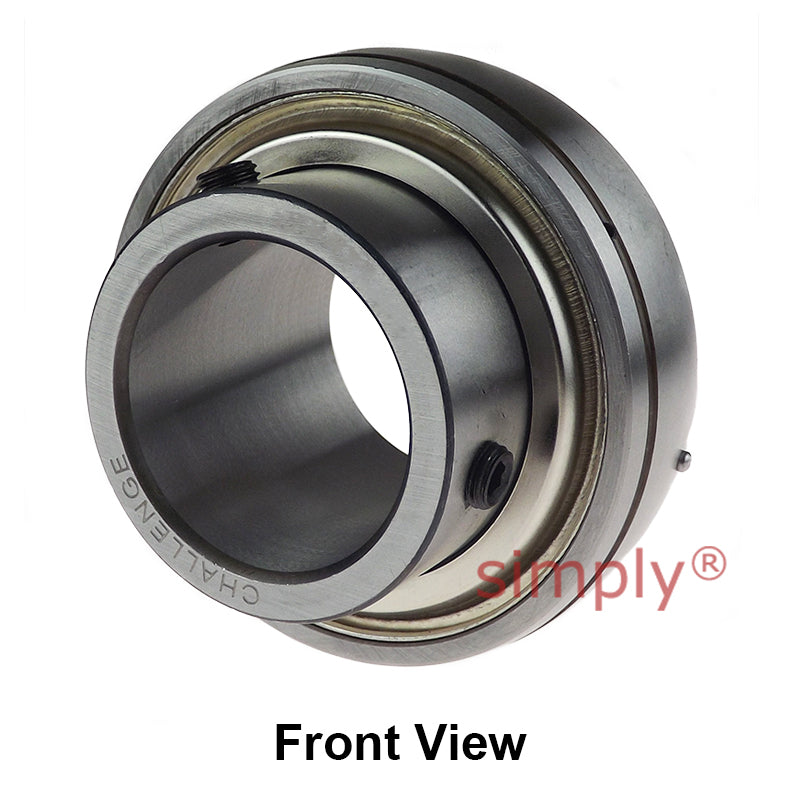

Challenge UC209 Metric Insert with Grub Screws with 45mm Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC209 Metric Insert with Grub Screws with 45mm Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price €34,95 ex VAT
Regular price Sale price €34,95 ex VAT
Sale Sold out

Equivalent to: UC.209

In stock

Price Break
3+ €26,20
5+ €24,73
9+ €24,44
19+ €24,14
49+ €23,85
74+ €23,55
99+ €22,08
199+ €21,79
249+ €21,49
499+ €21,20
999+ €20,61
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 45mm
Outside Diameter D 85mm
Overall Width Bi 49.2mm
Inner Race Width Be 22mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 30.2mm
Dimension G 8mm
Grub Screws x 2 M8x1.0mm
Load Rating (Dynamic) 2560kg
Load Rating (Static) 1810kg
Max Speed 1900 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
