SKU: UC.205-16.TS.CHAL

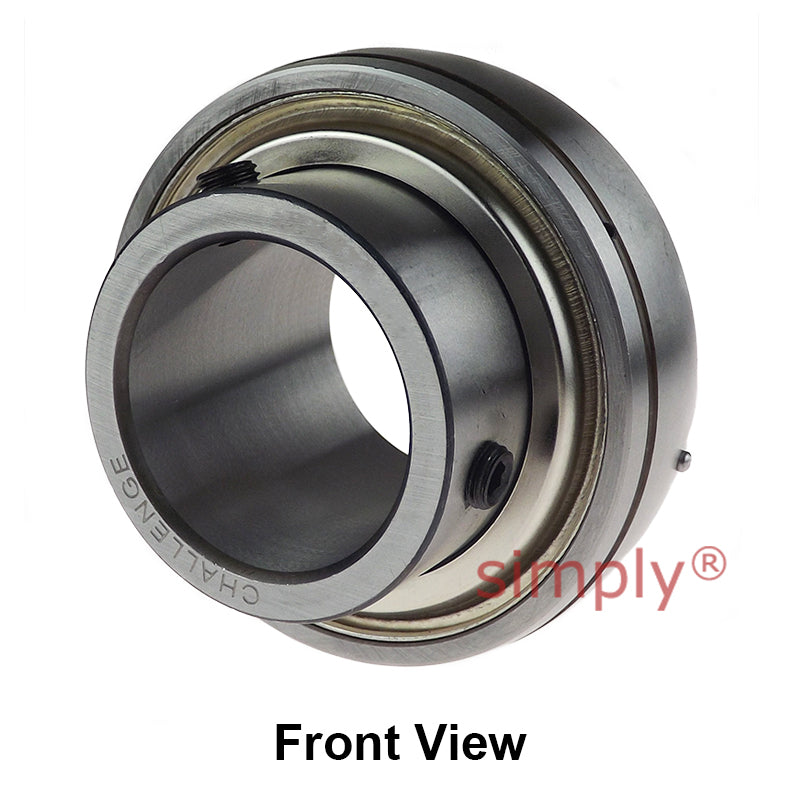

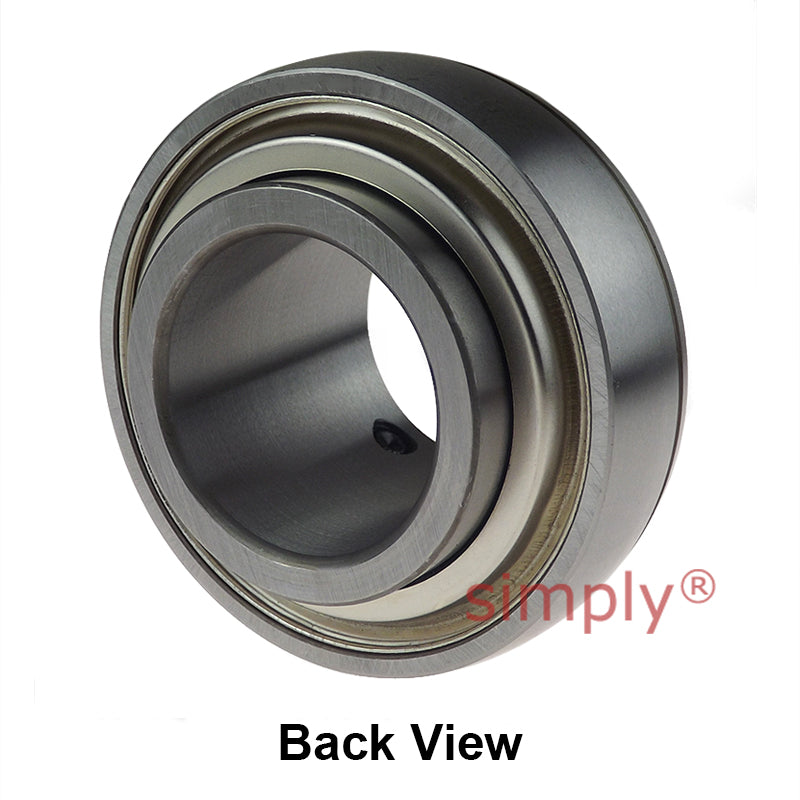

Challenge UC205-16 Imperial Insert with Grub Screws with 1 inch Bore 52mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC205-16 Imperial Insert with Grub Screws with 1 inch Bore 52mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€14,95
ex VAT
Regular price
Sale price
€14,95
ex VAT
Equivalent to: UC.205-16
In stock
Price Break
3+
€11,12
5+
€10,49
9+
€10,37
19+
€10,24
49+
€10,12
74+
€9,99
99+
€9,37
199+
€9,24
249+
€9,12
499+
€8,99
999+
€8,74
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 1 inch |
|---|---|
| Outside Diameter D | 52mm |
| Overall Width Bi | 34.1mm |
| Inner Race Width Be | 17mm |
| Back of Bearing to Centre Line n | 14.3mm |
| Front of Bearing to Centre Line m | 19.8mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1100kg |
| Load Rating (Static) | 710kg |
| Max Speed | 3400 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
