SKU: UC.204-12.TS.CHAL

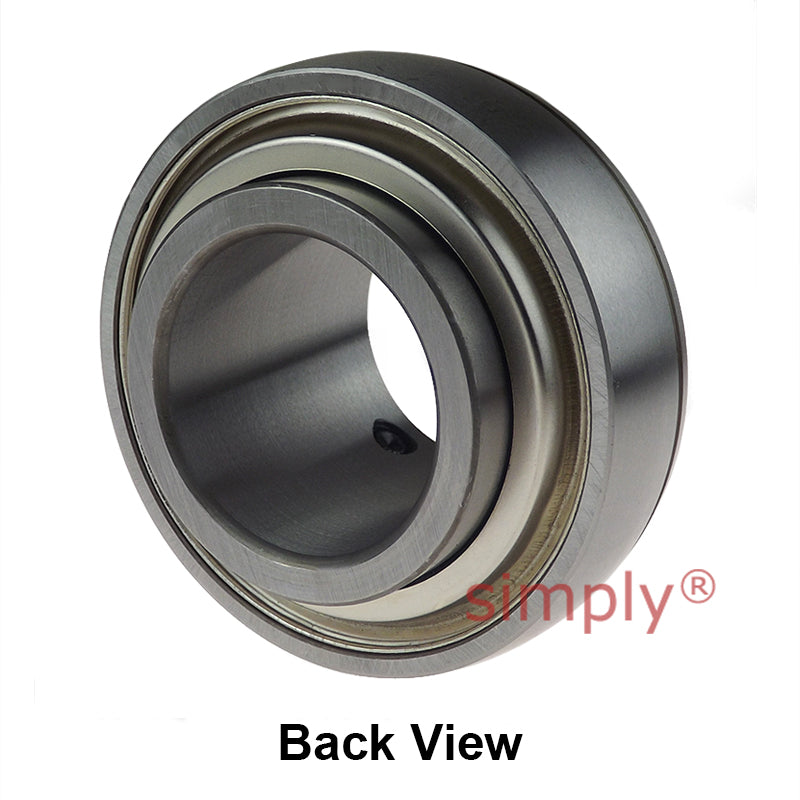

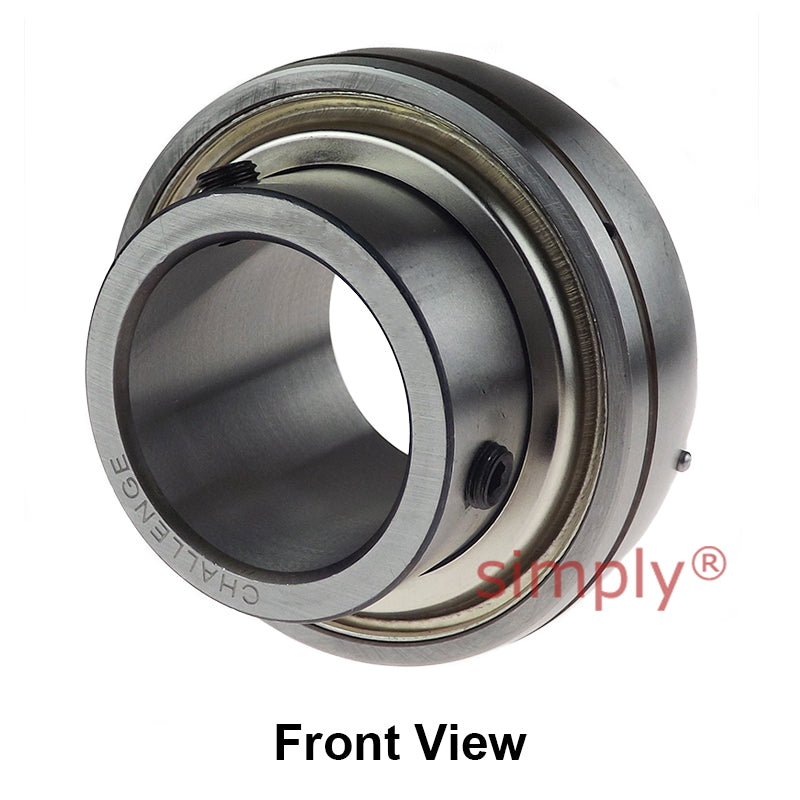

Challenge UC204-12 Imperial Insert with Grub Screws with 3/4 inch Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC204-12 Imperial Insert with Grub Screws with 3/4 inch Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€14,95
ex VAT
Regular price
Sale price
€14,95
ex VAT
Equivalent to: UC.204-12
In stock
Price Break
3+
€10,63
5+
€10,03
9+
€9,91
19+
€9,79
49+
€9,67
74+
€9,55
99+
€8,96
199+
€8,84
249+
€8,72
499+
€8,60
999+
€8,36
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 3/4 inch |
|---|---|
| Outside Diameter D | 47mm |
| Overall Width Bi | 31mm |
| Inner Race Width Be | 17mm |
| Back of Bearing to Centre Line n | 12.7mm |
| Front of Bearing to Centre Line m | 18.3mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1000kg |
| Load Rating (Static) | 630kg |
| Max Speed | 4000 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
