SKU: UC.204

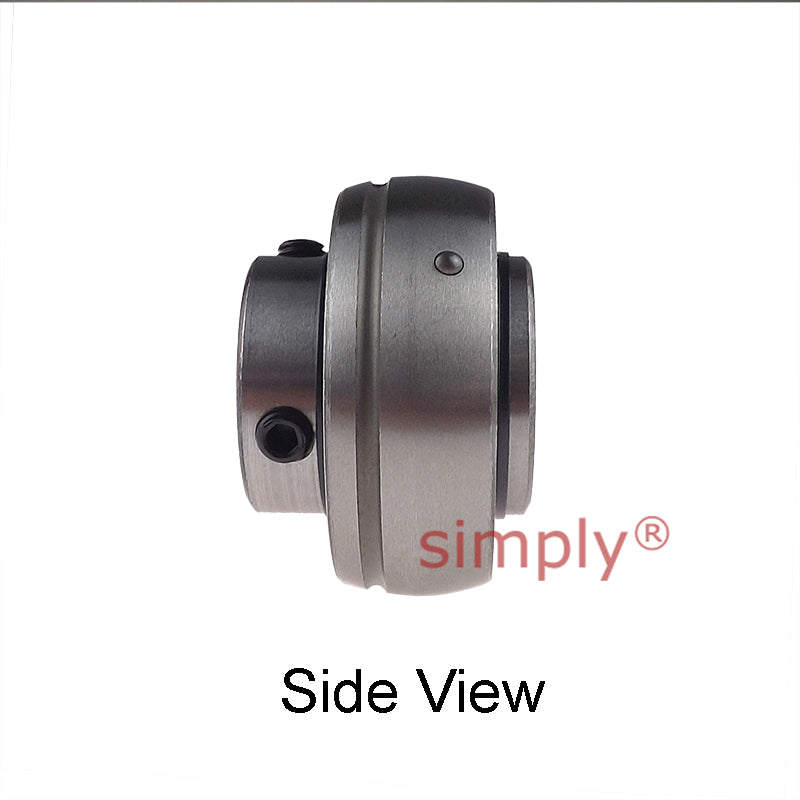

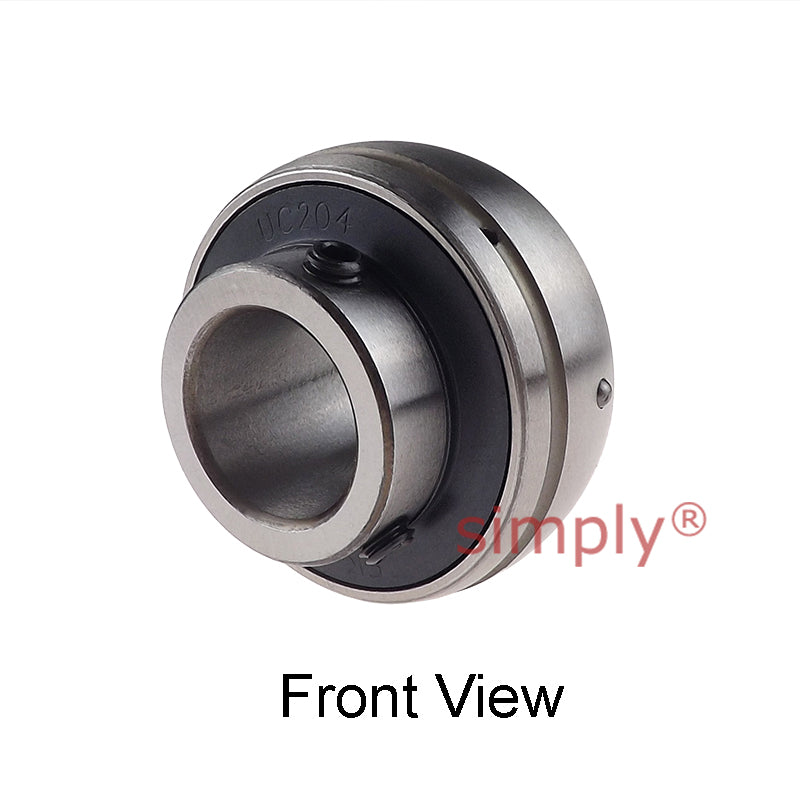

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
Equivalent to: 1020-20G
In stock
Price Break
3+
€4,75
4+
€4,48
9+
€4,43
19+
€4,37
49+
€4,32
99+
€4,27
499+
€4,00
999+
€3,95
1999+
€3,89
2999+
€3,84
4999+
€3,73
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
