SKU: UC.203.TS.CHAL

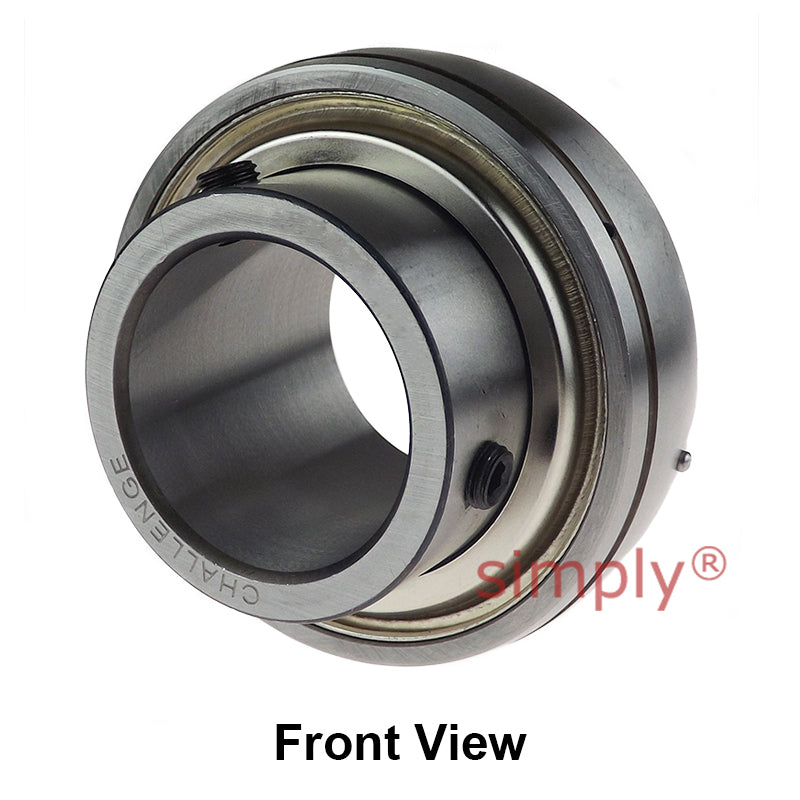

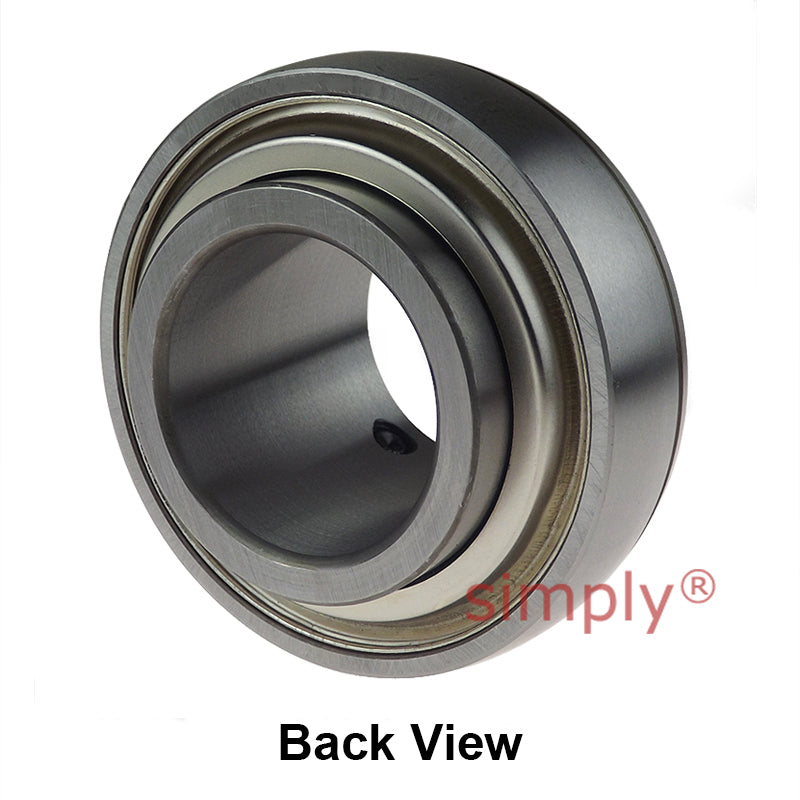

Challenge UC203 Metric Insert with Grub Screws with 17mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC203 Metric Insert with Grub Screws with 17mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
Equivalent to: UC.203
In stock
Price Break
3+
€13,45
5+
€12,70
9+
€12,54
19+
€12,39
49+
€12,24
74+
€12,09
99+
€11,34
199+
€11,18
249+
€11,03
499+
€10,88
999+
€10,58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 17mm
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 17mm |
|---|---|
| Outside Diameter D | 47mm |
| Overall Width Bi | 31mm |
| Inner Race Width Be | 17mm |
| Back of Bearing to Centre Line n | 12mm |
| Front of Bearing to Centre Line m | 18.3mm |
| Dimension G | 5mm |
| Working Temperature | -30°C to +120°C |
